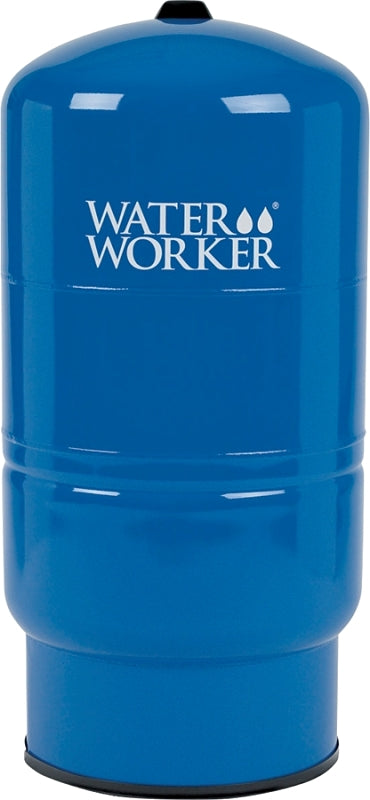

Water Worker HT-20B Well Tank, 32 in H, 20 gal Capacity, 100 psi Working, Steel
Water Worker HT-20B Well Tank, 32 in H, 20 gal Capacity, 100 psi Working, Steel
Water Worker

Water Worker HT-20B Series Well Tank, 32 in H, 20 gal Capacity, 100 psi Working, Steel

Our Item #: VORG8103632 UPC: 642031613134
Delivery i
3-5 Business Days
813 available
Ship to Store i
Pickup in 2-4 days
184 available
$226.45 $242.29you save $15.84
Maximum 100 psi pressure rating for residential use. Heavy diaphragm designed for extended life, locking ring, high-grade polypropylene liner, durable steel base. NSF Standard 61 listed meets FDA requirements for potable water. Maximum operating temperature is 200 deg F. Factory pre-charged to 38 psi. Made in the USA. 5 year limited warranty.
Unit: EA
UPC: 642031613134
Model Number: HT-20B
Water Worker HT-20B Series Well Tank, 32 in H, 20 gal Capacity, 100 psi Working, Steel
$226.45$242.29

  • Easy installation
  • Maximum 100 psi pressure rating for residential use
  • Heavy-duty diaphragm is designed for extended life
  • Locking ring provides an airtight diaphragm seal for years of dependable service
  • High-grade polypropylene liner is non-metallic for clean, fresh, great tasting drinking water
  • Weather-resistant paint system withstands damp environments without corroding
  • Durable steel base provides strong support

  • Capacity: 20 gal
  • Connection Size: 1 in
  • Connection Type: FNPT
  • Diameter: 16 in
  • Height: 33.0 in
  • Material: Steel
  • Temperature Rating: 200 deg F
  • Width: 16 in
  • Working Pressure: 100 psi
