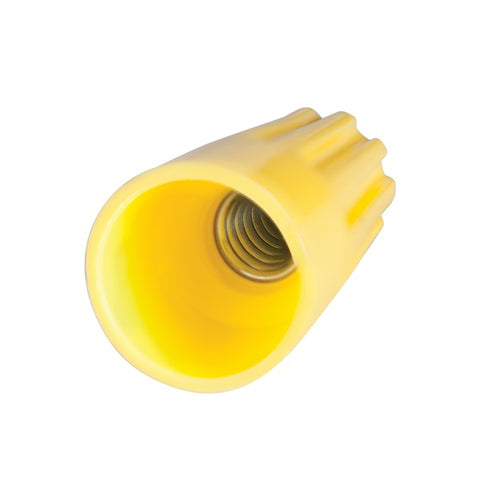

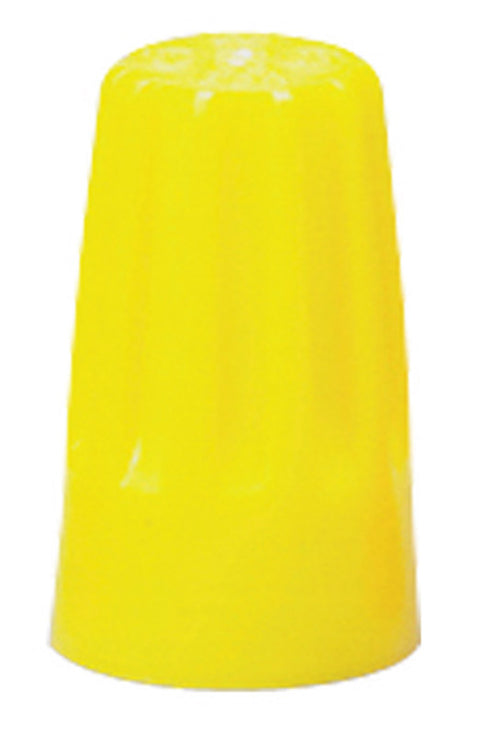

Wingguard Industrial Wire Connector Thermoplastic Yellow 25
Wingguard Industrial Wire Connector Thermoplastic Yellow 25
Wingguard Industrial Wire Connector Thermoplastic Yellow 25
Wingguard Industrial Wire Connector Thermoplastic Yellow 25
Power Products Llc

Wingguard Industrial Wire Connector Thermoplastic Yellow 25

Our Item #: VSHE34921 UPC: 032076002534
Store Pickup i
Today
1 in stock
$4.99

Wingguard Industrial Wire Connector Thermoplastic Yellow 25

  • Brand Name: Wingguard
  • Product Type: Wire Connector
  • Number in Package: 25
  • Wire Range: 18-10 AWG
  • Color: Yellow
  • Packaging Type: Boxed
  • CSA Listed: Yes
  • UL Listed: Yes

    • Unit: EA
    UPC: 032076002534
    Model Number: 25-004
    Wingguard Industrial Wire Connector Thermoplastic Yellow 25
    $4.99

    • Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
    • Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
    • Flame-retardant properties resist heat distortion up to 221 deg F
    • High-dielectric shell features deep skirt design to prevent exposure of bare wire
    • Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
    • Copper to copper connections only

    • Voltage Rating: 300/600 V
    • Current Rating:
    • Wire Size: 18 to 10 AWG
    • Tab Size:
    • Number of Poles:
    • Contact Material: Steel
    • Contact Coating: Zinc
    • Housing Material: Polypropylene
    • Color: Yellow
    • Mounting Type: Screw
    • Temperature Rating:
    • Length: 35/64 in
    • Width: 35/64 in
    • Height: 15/16 in
    • Includes:

    cULus Listed
