Wingguard Industrial Wire Connector Thermoplastic Blue 10
Wingguard Industrial Wire Connector Thermoplastic Blue 10
Wingguard Industrial Wire Connector Thermoplastic Blue 10
Wingguard Industrial Wire Connector Thermoplastic Blue 10
Wingguard Industrial Wire Connector Thermoplastic Blue 10
Power Products Llc

Wingguard Industrial Wire Connector Thermoplastic Blue 10

Our Item #: VSHE3022241 UPC: 032076002664
Store Pickup i
Today
6 in stock
$7.99

Wingguard Industrial Wire Connector Thermoplastic Blue 10

  • Brand Name: Wingguard
  • Number in Package: 10
  • Wire Range: 14-6 AWG
  • Product Type: Wire Connector
  • CSA Listed: Yes
  • UL Listed: Yes
  • Color: Blue
  • Packaging Type: Bagged

    • Unit: EA
    UPC: 032076002664
    Model Number: 25-089
    Wingguard Industrial Wire Connector Thermoplastic Blue 10
    $7.99

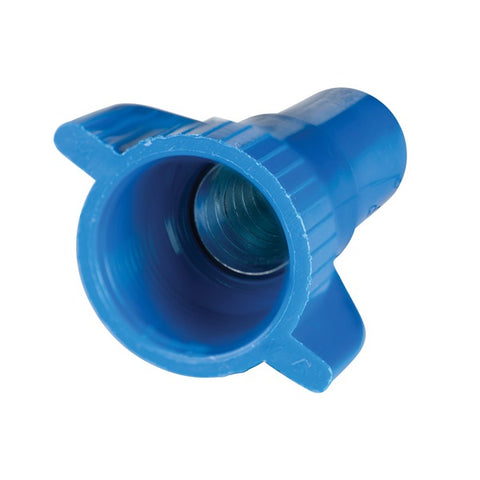

    • Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
    • Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
    • Flame-retardant properties resist heat distortion up to 221 deg F
    • High-dielectric shell features deep skirt design to prevent exposure of bare wire
    • Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
    • Copper to copper connections only

    • Voltage Rating: 300/600 V
    • Current Rating:
    • Wire Size: 14 to 6 AWG
    • Tab Size:
    • Number of Poles:
    • Contact Material: Steel
    • Contact Coating: Zinc
    • Housing Material: Thermoplastic
    • Color: Blue
    • Mounting Type: Screw
    • Temperature Rating:
    • Length: 1-1/2 in
    • Width: 1-1/4 in
    • Height:
    • Includes:

    cULus Listed
