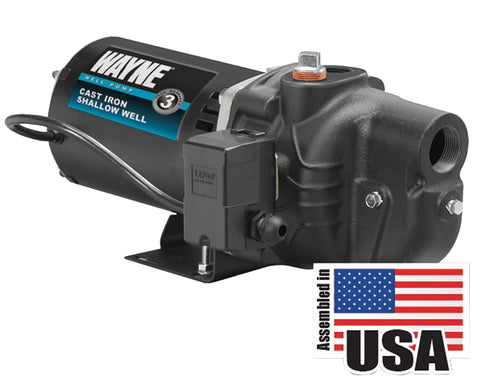

Wayne SWS Series SWS50 Jet Pump, 1-Phase, 120/240 V, 0.5 hp, 1-1/4 x 1 in Connection, 25 ft Max Head, 375 gph, Iron
Wayne

Wayne SWS Series SWS50 Jet Pump, 1-Phase, 120/240 V, 0.5 hp, 1-1/4 x 1 in Connection, 25 ft Max Head, 375 gph, Iron

Our Item #: VORG6194914 UPC: 040066218773
Delivery i
3-5 Business Days
46 available
$334.75 $385.05you save $50.30
Shallow well jet pumps are single stage domestic water pumps designed for pumping portable water in applications where the water is located less than 25 ft vertically from the pump. A pressure switch is a standard feature. The shallow well pump can be mounted to either a pre-charged, conventional type or free-standing pressure tank.
Unit: EA
UPC: 040066218773
Model Number: SWS50
Wayne SWS Series SWS50 Jet Pump, 1-Phase, 120/240 V, 0.5 hp, 1-1/4 x 1 in Connection, 25 ft Max Head, 375 gph, Iron
$334.75$385.05

  • Dual-voltage (120/240 V) high-efficiency square flange motor (factory set for 240 V)
  • Pressure switch is pre-set at 30 to 50 psi for automatic operation
  • Durable cast iron volute with dedicated priming port for volute filling
  • For wells 0 to 25 ft in D

  • Connection Size: 1-1/4 x 1 in
  • Connection Type: NPT
  • Flow Rate: 375 gph
  • Frequency Rating: 60 Hz
  • HP Rating: 0.5 hp
  • Material: Iron
  • Maximum Head: 25 ft
  • Motor Type: Dual Voltage
  • Number of Phases: 1
  • Number of Stages: 1
  • Pressure Rating: 50 psi
  • Suitable for: 0 to 25 ft Depth Shallow Wells
  • Voltage Rating: 120/240 V
