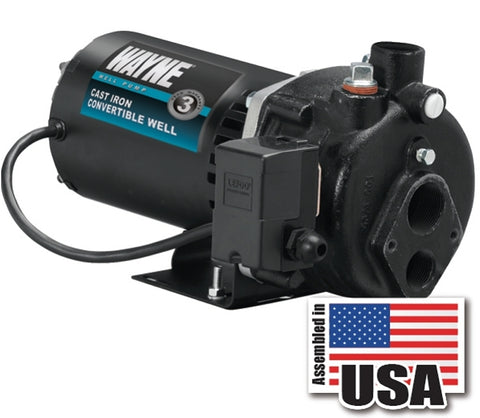

Wayne CWS75 Jet Well Pump, 120/240 V, 0.75 hp, 1-1/4 in Suction, 3/4 in Discharge Connection, 90 ft Max Head, 462 gph
Wayne CWS75 Jet Well Pump, 120/240 V, 0.75 hp, 1-1/4 in Suction, 3/4 in Discharge Connection, 90 ft Max Head, 462 gph
Wayne

Wayne CWS75 Jet Well Pump, 120/240 V, 0.75 hp, 1-1/4 in Suction, 3/4 in Discharge Connection, 90 ft Max Head, 462 gph

Our Item #: VORG6173611 UPC: 040066105950
Delivery i
3-5 Business Days
39 available
Ship to Store i
Pickup in 2-4 days
9 available
$411.67 $473.49you save $61.82
Jet pumps are single-stage domestic water pumps designed for pumping potable water in applications where the water is up to 100 ft below pump center line. A pressure switch is a standard feature. A built-in control valve is available on deep well pumps. Deep well pumps can be mounted to either a pre-charged, conventional type or free- standing pressure tank.
Unit: EA
UPC: 040066105950
Model Number: CWS75
Wayne CWS75 Jet Well Pump, 120/240 V, 0.75 hp, 1-1/4 in Suction, 3/4 in Discharge Connection, 90 ft Max Head, 462 gph
$411.67$473.49

  • Dual voltage (120/240 V) high efficiency square flange motor (factory set for 240 V)
  • Pressure switch is pre-set at 30-50 psi for automatic operation
  • Durable cast iron volute with dedicated priming port for volute filling
  • For wells 0 - 90 ft in depth
  • Jet assembly required

  • Connection Size: 1-1/4 in Suction 3/4 in Discharge
  • Connection Type: NPT
  • Flow Rate: 462 gph
  • Frequency Rating: 60 Hz
  • HP Rating: 0.75 hp
  • Material: Iron
  • Maximum Head: 90 ft
  • Motor Type: Dual Voltage
  • Pressure Rating: 50 psi
  • Suitable for: 0 to 90 ft Depth Wells
  • Voltage Rating: 120/240 V
