Wayne CDU800 Sump Pump, 1-Phase, 10 A, 120 V, 0.5 hp, 1-1/2 in Outlet, 20 ft Max Head, 2040 gph, Iron
Wayne CDU800 Sump Pump, 1-Phase, 10 A, 120 V, 0.5 hp, 1-1/2 in Outlet, 20 ft Max Head, 2040 gph, Iron
Wayne

Wayne CDU800 Sump Pump, 1-Phase, 10 A, 120 V, 0.5 hp, 1-1/2 in Outlet, 20 ft Max Head, 2040 gph, Iron

Our Item #: VORG6624035 UPC: 040066100092
Delivery i
3-5 Business Days
317 available
Ship to Store i
Pickup in 2-4 days
35 available
$235.09 $270.45you save $35.36

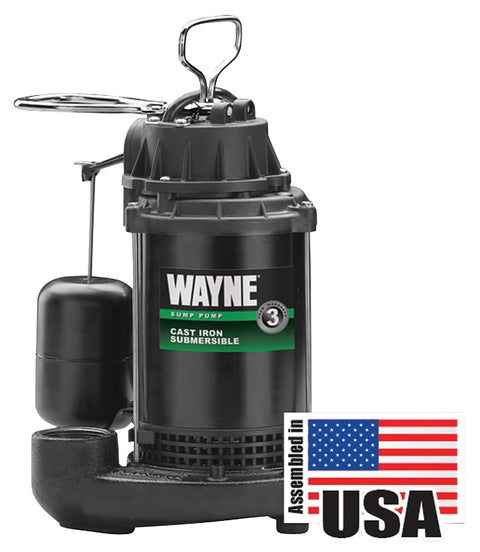

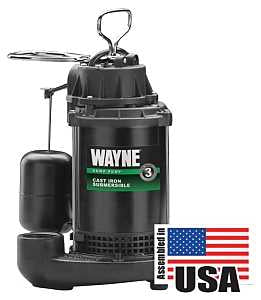

1/2 hp cast iron and coated steel submersible sump pump. Assembled in the US with foreign and domestic parts. Float switch tested to 1 million cycles. Top suction design eliminates air locks and clogging from debris in bottom of sump pit. Epoxy-coated steel motor housing and rugged, cast iron base. Fully submersible. 1/2 hp, max flow rate is 4200 gph at 0 ft 1-1/2 in NPT discharge. For use in 11 in Dia or larger sump basins. 9 in ON level and 4 in OFF level.
Unit: EA
UPC: 040066100092
Model Number: CDU800
Wayne CDU800 Sump Pump, 1-Phase, 10 A, 120 V, 0.5 hp, 1-1/2 in Outlet, 20 ft Max Head, 2040 gph, Iron
$235.09$270.45

  • 9 in on level and 4 in off level
  • Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit
  • Durable construction materials
  • Designed for easy installation without any plumbing changes
  • High-performance motor
  • Easy carry handle for portability
  • Float guard protects switch from hang-ups

  • Cord Size: 8 ft
  • Current Rating: 10 A
  • Flow Rate: 2040 gph
  • Frequency Rating: 60 Hz
  • HP Rating: 0.5 hp
  • Material: Iron
  • Maximum Head: 20 ft
  • Number of Phases: 1
  • Outlet Connection Size: 1-1/2 in
  • Suitable for: 22 in H x 11 in Dia Basin Sumps
  • Temperature Rating: 120 deg F
  • Voltage Rating: 120 V
