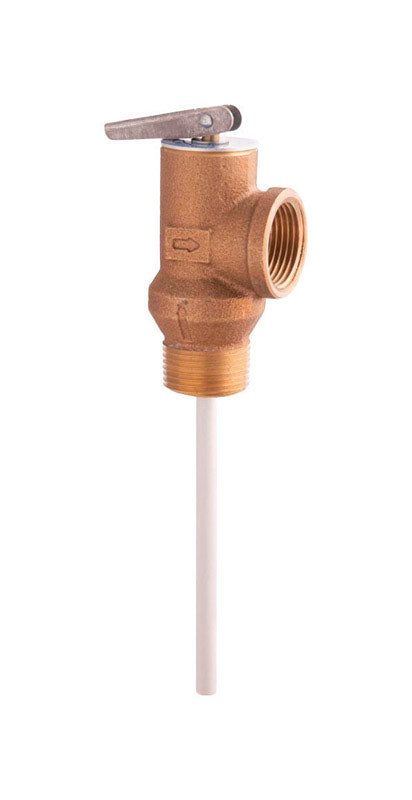

Watts 100XL Series 0066100 Relief Valve, 3/4 in, MNPT x FNPT, Bronze Body
Watts

Watts 100XL Series 0066100 Relief Valve, 3/4 in, MNPT x FNPT, 150 psi Setting, Brass Body

Our Item #: VACE4867792 UPC: 98268000016
Delivery i
3-5 Business Days
476 available
$28.43 $39.35you save $10.92
The temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions. Provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105000 BTU/HR.
  • Thermostat is accurate and proven
  • Unique thermostat with special thermo-bonded coating and a test lever
  • Easy to install

    •   California residents see  Prop 65 Warning(s)


    UPC: 098268000016
    Model Number: 0066100
    Watts 100XL Series 0066100 Relief Valve, 3/4 in, MNPT x FNPT, 150 psi Setting, Brass Body
    $28.43$39.35

  • Brand Name:Watts
  • Product Type: Temperature and Pressure Relief Valve
  • Adjustable: No
  • Body Material: Bronze
  • Brand Name: Watts
  • End 1 Size: 3/4 inch
  • End 1 Type: MNPT
  • End 2 Size: 3/4 inch
  • End 2 Type: FNPT
  • Maximum Pressure: 150 pound per square inch
  • Maximum Temperature: 210 degree Fahrenheit
  • Number in Package: 1 pack
  • Packaging Type: Boxed
  • Lead Content: Lead-Free

    •

    • Body Material: Brass
    • Connection Type: MNPT x FNPT
    • Dimensions: 7-1/2 in H x 1-3/4 in W
    • Includes: Test Lever and Stainless Steel Spring
    • Inlet Pressure: 75 to 150
    • Media: Water
    • Nominal Size: 3/4 in
    • Operating Pressure: 112 psi
    • Outlet Pressure: 150
    • Setting Pressure: 150 psi
    • Spring Material: Stainless Steel
    • Temperature Rating: 210 deg F
    • Trim Material: Brass
