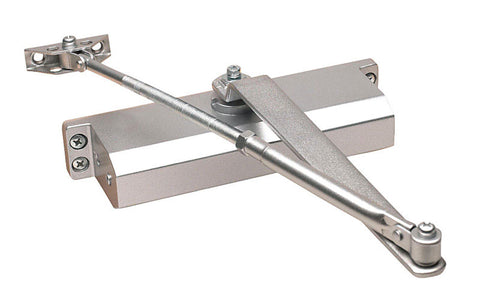

Tell Aluminum Aluminum/Steel Hydraulic Door Closer Grade 3
Tell Manufacturing's 500 Series Door Closer is designed for interior commercial use. It is a Grade 3 heavy-duty aluminum commercial door closer that complies with ANSI A156.4, UL/ULC listed up to 3 hour fire rated. The DC100137 has a fixed spring tension, size 3.
Forged steel, accommodates reveals up to 3 1/4 inch adjustable extension arm
Adjustable hydraulic providing cushioning and preventing uncontrolled openings of the door
Grade 3 size 3 aluminum finish closer
9-1/16 inch horizontal and 3/4 inch vertical mounting hole locations
Tri-pack regular, top jamb and parallel arm applications
Door range up to 180 degree
Complies with ANSI A156.4, grade 1, 2 million cycles, UL/ULC listed up to 3 hours fire rated
Adjustable, independent, non-critical (sweep and latch), consistent and closing speeds
Unit: EA
UPC: 737874400086
Model Number: DC100137
- Mounting tri-pack for regular, top jamb and parallel arm applications
- Adjustable hydraulic back check provides cushioning and preventing uncontrolled openings of the door
CLOSER GR3 SZ3 ALUM
Brand Name: Tell
Finish: Aluminum
Material: Aluminum/Steel
Mechanism: Hydraulic
Product Type: Door Closer
Grade: Grade 3
Minimum Door Length: 30 in.
Packaging Type: Clamshell
Hardware Included: Yes
Adjustable Closing Speed: Yes
Standard-duty
Certifications: ANSI A156.4, 500,000 cycles
Chassis: Non-handed
Cast aluminum
Mounts to regular top jamb or parallel arm applications
Parallel arm bracket included
Main arm is stamped steel and accommodates up to 3-1/4 in., adjustable extension arm
Spring power is fixed 2, 3 or 4
Fits same hole pattern as Norton 1600 or Yale 50 series
Size 3 spring
