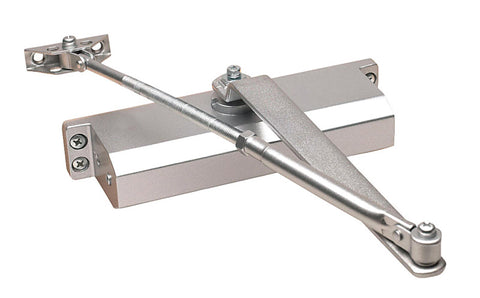

Tell Aluminum Aluminum/Steel Hydraulic Door Closer Grade 3
Tell Manufacturing's 500 Series Door Closer is designed for interior commercial use. It is a Grade 3 heavy-duty aluminum commercial door closer that complies with ANSI A156.4, UL/ULC listed up to 3 hour fire rated. The DC100010 has a fixed spring tension, size 4.
Size 4 spring fits interior 3 feet 6 inch doors and exterior 3 feet doors
Cast-aluminum construction with an aluminum finish
180 degree maximum door range
Stamped steel parallel arm for reliable operation
Grade 3 door closer provides up to 500,000 cycles
Unit: EA
UPC: 737874400123
Model Number: DC100010
CLOSER GR3 SZ4 ALUM
Brand Name: Tell
Finish: Aluminum
Material: Aluminum/Steel
Mechanism: Hydraulic
Product Type: Door Closer
Grade: Grade 3
Minimum Door Length: 30 in.
Packaging Type: Clamshell
Adjustable Closing Speed: Yes
Hardware Included: Yes
Standard-duty
Certifications: ANSI A156.4, 500,000 cycles
Chassis: Non-handed
Cast aluminum
Mounts to regular top jamb or parallel arm applications
Parallel arm bracket included
Main arm is stamped steel and accommodates up to 3-1/4 in., adjustable extension arm
Spring power is fixed 2, 3 or 4
Fits same hole pattern as Norton 1600 or Yale 50 series
Size 4 spring
