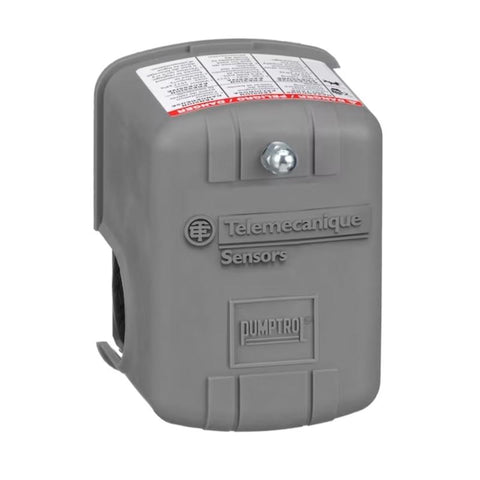

Telemecanique Pumptrol 80 psi 100 psi Pressure Switch
Telemecanique Pumptrol 80 psi 100 psi Pressure Switch
Tes Electric Us Llc

Telemecanique Pumptrol 80 psi 100 psi Pressure Switch

Our Item #: VACE40993 UPC: 47569178221
$29.99

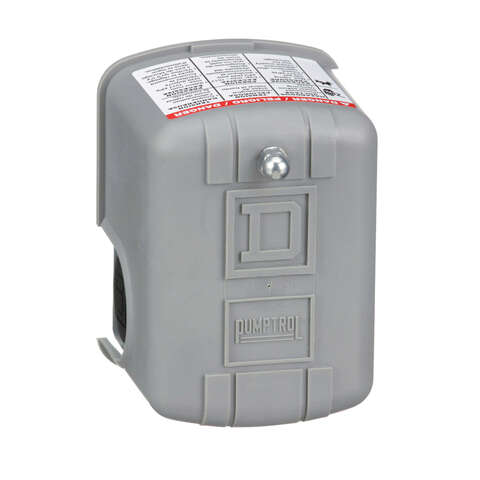

This Square D pumptrol FHG2J27CP air-compressor pressure switch is the most trusted brand in residential, commercial and industrial air compressor applications. The FHG2J27CP controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 100 PSI. The switch has a 1/4 inch NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 HP or less. The switch is diaphragm actuated and has a fixed differential. The threshold or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections and two 2-pole NC contacts open on rising pressure.
  • Universally accepted and recognized design is easy to wire
  • Features drift proof cut-in and cut-out settings
  • Has visible vertical contacts which are easy to inspect
  • Pressure switch is RoHS compliant
  • Switch is UL listed and CSA certified

    • UPC: 47569178221
    Model Number: FHG2J27CP

  • Brand Name:Square D
  • Sub Brand: Pumptrol
  • Product Type: Pressure Switch
  • Brand Name: Square D
  • CSA LIsted: Yes
  • Height: 8 inch
  • Maximum Pressure: 100 pound per square inch
  • Maximum Temperature: 158 degree Fahrenheit
  • Minimum Pressure: 80 pound per square inch
  • Minimum Temperature: 32 degree Fahrenheit
  • Pipe Size: 1/4 inch
  • Sub Brand: Pumptrol
  • Thread Type: NPT
  • UL Listed: Yes
  • Volts: 230 volt
  • Width: 5 inch
  • Connection Material: Stainless Steel
