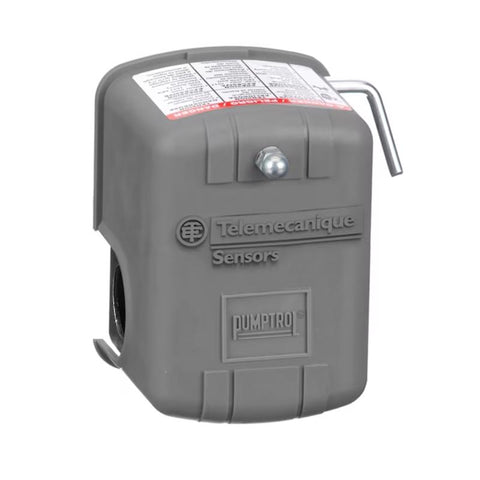

Telemecanique Pumptrol 30 psi 50 psi Pressure Switch
Regular price
$44.99
This Square D Pumptrol FSG2J21M4CP electromechanical pressure switch is the most trusted brand in residential, commercial and industrial pumping applications. For over 75 years, Square D pressure switches continue to meet the needs of our customers. This switch has a 30 PSI to 50 PSI pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 1 enclosure has a 1/4 inch NPSF internal fluid connection and screw clamp terminals. The switch works with a 1.5 HP or less pump. The adjustable differential range is 15 psi to 30 psi and the cut-out range is 20 PSI to 65 PSI. The low-pressure cut-off (auto-start-off) operates at approximately 10 psig below the cut-in and will turn off the pump. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified. Square D Pumptrol pressure switches are manufactured by Schneider electric.
If system pressure is lost for any reason, a low water condition for example, the automatic lower pressure/water cut-off feature will open the contacts, turning off the pump
Universally accepted and recognized design is easy to wire, features drift proof cut-in and cut-out settings and has visible vertical contacts which are easy to inspect
Switch is UL listed and Canadian Standards Association (CSA) certified
FSG2J21M4CP activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached
Pressure switch is RoHS compliant, NSF certified to meet federal low lead requirements
Low pressure cutoff M4
30 to 50 PSI
Captive cover screw
Single and 3 phase rated
Can be mounted in any position
UPC: 47569034664
Model Number: FSG2J21M4CP
UPC: 47569034664
Model Number: FSG2J21M4CP
