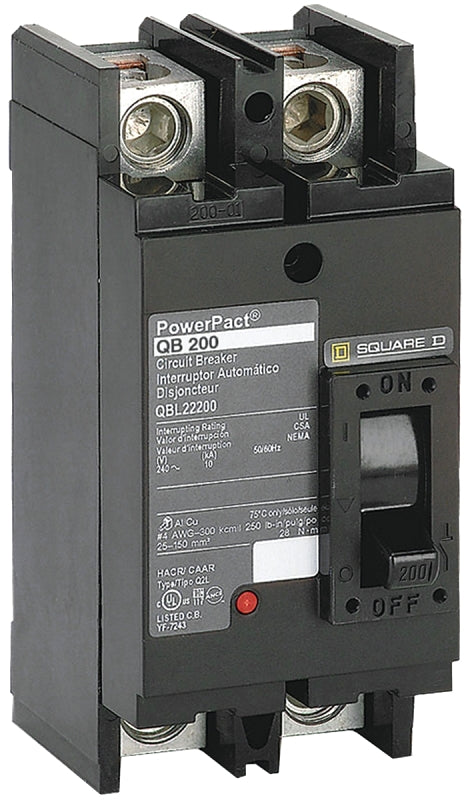

Square D QBL22200 Circuit Breaker, Type QBL, 200 A, 2 -Pole, 240 V, Plug Mounting, Black
Square D QBL22200 Circuit Breaker, Type QBL, 200 A, 2 -Pole, 240 V, Plug Mounting, Black
Square D

Square D QBL22200 Circuit Breaker, Type QBL, 200 A, 2 -Pole, 240 V, Plug Mounting, Black

Our Item #: VORG6191845 UPC: 785901412632
Delivery i
3-5 Business Days
279 available
Ship to Store i
Pickup in 2-4 days
148 available
$185.53 $213.45you save $27.92
PowerPact Q-frame circuit breakers are used for overcurrent protection and switching on ac systems. They are designed for 240 VAC applications.
Unit: EA
UPC: 785901412632
Model Number: QBL22200
Square D QBL22200 Circuit Breaker, Type QBL, 200 A, 2 -Pole, 240 V, Plug Mounting, Black
$185.53$213.45

  • Shielded copper bus bar
  • Available in single and three phase
  • Ground bar is included with all main lugs load centers with three mounting locations
  • Convertible mains let you meet changing job-site requirements
  • Tangential main service knockouts
  • Enclosure rotates for top or bottom feed to reduce service cable waste
  • Qwik-Open circuit breaker protection
  • Exclusive Visi-Trip red indicator
  • Quick make - quick break mechanism
  • Plug-on design, easy to install

  • Actuator Type: Magnetic Thermal
  • Color: Black
  • Current Rating: 200 A
  • Dimensions: 3.93 in W x 4.5 in D x 6.47 in H
  • Enclosure Type: Q-Frame
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Phases: 1
  • Number of Poles: 2
  • Operating Frequency: 50/60 Hz
  • Terminal Type: Lug
  • Type: Type QBL
  • Voltage Rating: 240 V
  • Wire Size: 4 AWG
