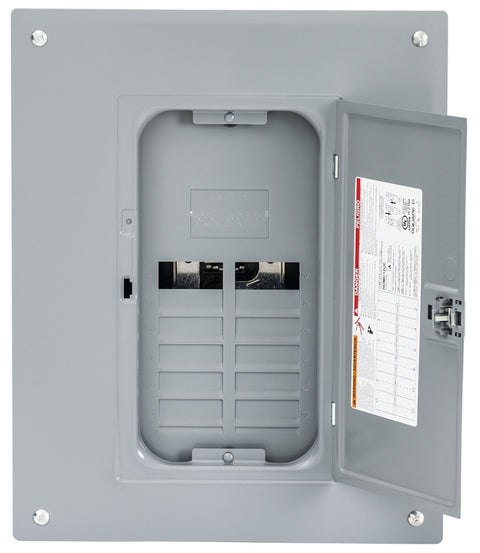

Square D Homeline HOM816L125PC Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
Square D Homeline HOM816L125PC Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
Square D

Square D Homeline HOM816L125PC Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Gray

Our Item #: VORG6994719 UPC: 785901973454
Delivery i
3-5 Business Days
47 available
Ship to Store i
Pickup in 2-4 days
5 available
$53.97 $62.15you save $8.18
Main lug indoor load center. Convertible to a main breaker with a QOM1 main breaker. Single-phase load center, NEMA type 1 enclosure, combination flush/surface indoor cover. Overhead or underground feed options. Plated aluminum bus bar. UL listed.
Unit: EA
UPC: 785901973454
Model Number: HOM816L125PC
Square D Homeline HOM816L125PC Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
$53.97$62.15

  • Designed for fast installation, reliability and superior circuit protection
  • Faster installation fewer connections
  • Saves wire - fully-distributed split neutral bar
  • Frees gutter space - No pigtails
  • Easier troubleshooting - time-saver diagnostics provide additional circuit information at the touch of a button
  • Faster and easier wiring all spaces accept tandems

  • Breaker/Load Center Type: Main Lug
  • Bus Bar Material: Aluminum
  • Cable Size: 6 to 2/0 6 to 1
  • Color: Gray
  • Cover/Lid Type: Flush
  • Current Rating: 125 A
  • Enclosure Type: NEMA 1
  • Finish: Baked Enamel
  • Includes: PK15GTAL Ground Bar
  • Interrupt Rating: 22 kA
  • Mounting Type: Plug
  • Number of Circuits: 16
  • Number of Phases: 1
  • Number Of Spaces: 8
  • Voltage Rating: 120/240 V
  • Wiring Configuration: 3-Wire
