Square D Homeline HOM612L100SCP Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
Square D Homeline HOM612L100SCP Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
Square D

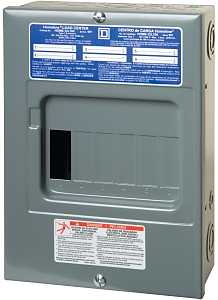

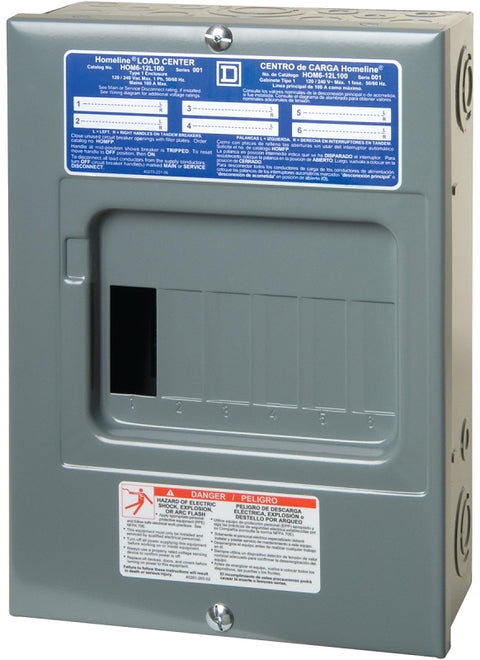

Square D Homeline HOM612L100SCP Load Center, 100 A, 6-Space, 12-Circuit, Main Lug, NEMA 1 Enclosure, Plug, Gray

Our Item #: VORG6719793 UPC: 047569071232
Delivery i
3-5 Business Days
136 available
Ship to Store i
Pickup in 2-4 days
13 available
$34.42 $39.65you save $5.23
Main lug indoor load center, 100 A, 6 space/12 circuit. NEMA type 1 enclosure. Single phase, 3-wire, solid neutral. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.
Unit: EA
UPC: 047569071232
Model Number: HOM612L100SCP
Square D Homeline HOM612L100SCP Load Center, 100 A, 6-Space, 12-Circuit, Main Lug, NEMA 1 Enclosure, Plug, Gray
$34.42$39.65

  • Accommodates plug-on secondary surge arrestor
  • Overhead/underground feed simply by rotating the device before installing
  • Surface mount device cover without a door
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque

  • Breaker/Load Center Type: Main Lug
  • Bus Bar Material: Aluminum
  • Cable Size: 8 to 1 AWG
  • Color: Gray
  • Cover/Lid Type: Flush
  • Current Rating: 100 A
  • Enclosure Type: NEMA 1
  • Finish: Baked Enamel
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Circuits: 12
  • Number of Phases: 1
  • Number Of Spaces: 6
  • Voltage Rating: 120/240 V
  • Wiring Configuration: 3-Wire
