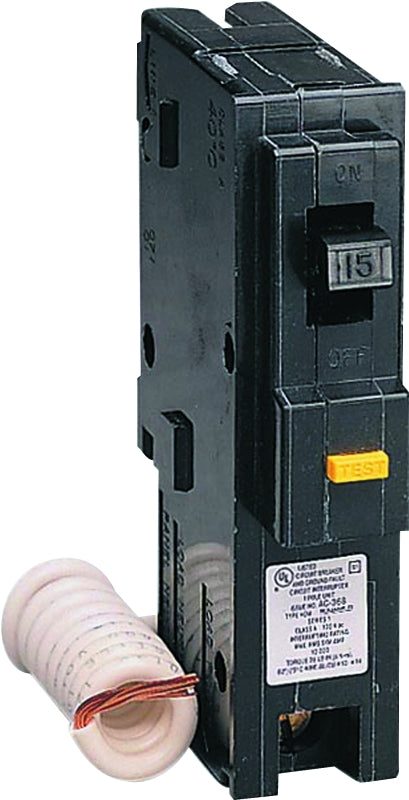

Square D Homeline HOM115GFICP Miniature Circuit Breaker, 15 A, 1-Pole, 120 V, Fixed Trip, Plug Mounting, Black
SQUARE D

Square D Homeline HOM115GFICP Miniature Circuit Breaker, 15 A, 1-Pole, 120 V, Fixed Trip, Plug Mounting, Black

Our Item #: VSHE6721401 UPC: 047569071096
$69.99
Homeline miniature circuit breakers are engineered and designed for fast installation and great circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This single pole circuit breaker with plug-in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short-circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 mA or more. The electrical connection is a clamp terminal that will accept two wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is commercial packaged.
Unit: CD
UPC: 047569071096
Model Number: HOM115GFICP

  • HOM one-pole standard circuit breakers (15 to 50 A)
  • HOM two-pole standard circuit breakers (15 to 200 A)
  • HOM tandem breakers (one-pole, 15/15 A, 20/20 A, 15/20 A, 20/30 A)
  • HOM quad tandems circuit breakers (one- and two-pole, 15 to 50 A)
  • HOM ground-fault circuit-interrupters (one- and two-pole, 15 to 50 A)
  • Square D arc fault circuit-interrupters (1-pole, 15 A and 20 A)
  • Square D combination arc fault circuit-interrupters (1-pole, 15 A and 20 A)
  • Available accessories include handle attachments, filler plates and neutral lugs
  • HOM sub-feed lugs, two-pole, rated 125 A and 225 A

  • Actuator Type: Quick-Break Quick-Make
  • Color: Black
  • Current Rating: 15 A
  • Dimensions: 3.13 in H x 1 in W x 2.98 in D
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Phases: 1
  • Number of Poles: 1
  • Number Of Spaces: 1
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 104 deg F
  • Terminal Type: Screw Clamp
  • Trip Sensitivity: 20.25 A
  • Trip Type: Fixed
  • Voltage Rating: 120 V
  • Wire Size: 14 to 10 AWG
