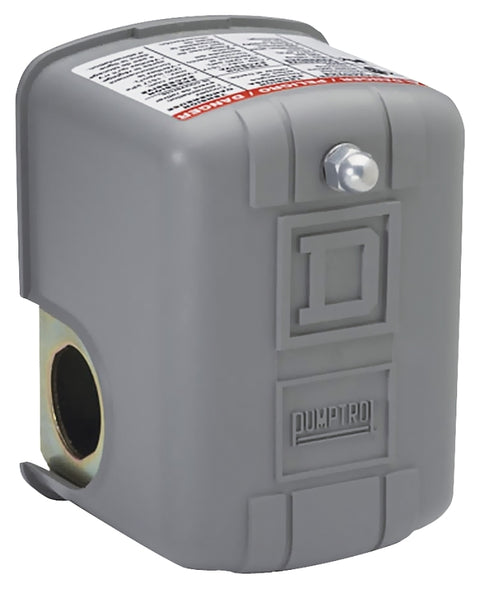

Square D 9013GSG2J20 Pressure Switch, 3-Phase, 10 A, 115/575 V, DPST, Screw Clamp Terminal, NEMA 1 Enclosure
Square D 9013GSG2J20 Pressure Switch, 3-Phase, 10 A, 115/575 V, DPST, Screw Clamp Terminal, NEMA 1 Enclosure
Square D

Square D 9013GSG2J20 Pressure Switch, 3-Phase, 10 A, 115/575 V, DPST, Screw Clamp Terminal, NEMA 1 Enclosure

Our Item #: VORG6128771 UPC: 785901559887
Delivery i
3-5 Business Days
9 available
$125.83 $155.95you save $30.12
Water pump and air compressor pressure switch with 20 to 40 psi cut-in/cut-out settings. Designed to control higher water pumps and air compressors requiring higher electrical ratings. 2-Pole, NEMA 1 enclosure, 1/4 in NPSF internal pressure connection, diaphragm actuated, UL/CSA Listed, RoHS compliant, NSF61-Annex G certified. Individually boxed.
Unit: EA
UPC: 785901559887
Model Number: 9013GSG2J20
Square D 9013GSG2J20 Pressure Switch, 3-Phase, 10 A, 115/575 V, DPST, Screw Clamp Terminal, NEMA 1 Enclosure
$125.83$155.95

    • Connection Type: 1/4 in NPS Female
    • Contact Form: DPST
    • Current Rating: 10 A
    • Diaphragm Material: Nitrile
    • Electrical Connection Type: Screw Clamp Terminal
    • Enclosure Type: NEMA 1
    • Number of Phases: 3
    • Operating Cycles: 100000
    • Port Type: Single
    • Temperature Rating: -22 to 257 deg F
    • Voltage Rating: 115/575 V
