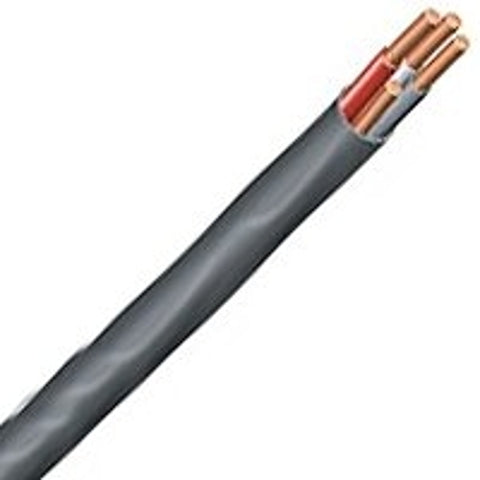

Romex 8/3NM-WGX125 Sheathed Cable, 8 AWG Wire, 3-Conductor, 125 ft L, Copper Conductor, PVC Insulation, Nylon Sheath
Southwire

Romex 8/3NM-WGX125 Sheathed Cable, 8 AWG Wire, 3-Conductor, 125 ft L, Copper Conductor, PVC Insulation, Nylon Sheath

Our Item #: VORG4444402 UPC: 032886263651
Delivery i
3-5 Business Days
256 available
Ship to Store i
Pickup in 2-4 days
20 available
$485.02 $561.25you save $76.23
Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the national Electric Code Article 336. Dwellings not exceeding three floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.
Unit: L FT
UPC: 032886263651
Model Number: 8/3NM-WGX125
Romex 8/3NM-WGX125 Sheathed Cable, 8 AWG Wire, 3-Conductor, 125 ft L, Copper Conductor, PVC Insulation, Nylon Sheath
$485.02$561.25

  • SIMpull jacket designed for easier pulling
  • Color-coded jacket

  • Bend Radius: 2.3 in
  • Conductor Insulation: PVC
  • Conductor Material: Copper
  • Current Rating: 40 A
  • Length: 125
  • Number of Conductors: 3
  • Operating Temperature: 90 deg C
  • Resistance: 0.653 Ohm
  • Sheath Color: Black
  • Sheath Diameter: 0.585 in
  • Sheath Material: Nylon
  • Stranded/Solid: Stranded
  • Strands per Conductor: 7
  • Type: NM-B
  • Voltage Rating: 600 V
  • Wire Size: 8 AWG
