Southwire 65676902 Non-Plenum Electrical Wire, 8 -Conductor, Solid Copper Conductor, PVC Insulation, Brown Sheath
Southwire

Southwire 65676902 Non-Plenum Electrical Wire, 8 -Conductor, Solid Copper Conductor, PVC Insulation, Brown Sheath

Our Item #: VORG5012430 UPC: 032886438622
Delivery i
3-5 Business Days
28 available
Ship to Store i
Pickup in 2-4 days
3 available
$157.57 $184.05you save $26.48

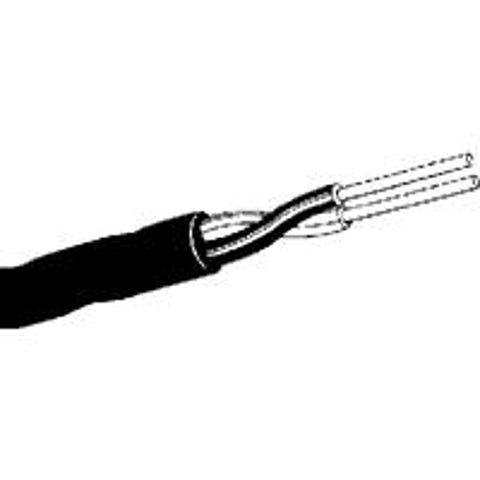

ETL Listed type CL2 power limited circuit cable is a general-purpose 8 conductor low voltage control cable. Construction provides solid uncoated copper conductors insulated with polyvinyl chloride (PVC) insulation twisted together without filler and covered with an ETL listed sunlight-resistant PVC jacket. Conductor colors are red, white, green, blue, yellow, brown, orange and black. Used for air conditioning controls, heat pumps, heating controls, thermostats and bell and alarm systems. For use in accordance with the NEC Article 725. Rated 60 deg C continuous in air. Solid 18/8 type CL2. Meets UL 1581 vertical flame tray test. 15 mil jacket thickness, approximately 202 mil overall cable diameter.
Unit: BX
UPC: 032886438622
Model Number: 65676944
Southwire 65676902 Non-Plenum Electrical Wire, 8 -Conductor, Solid Copper Conductor, PVC Insulation, Brown Sheath
$157.57$184.05

    • Conductor Insulation: PVC
    • Conductor Material: Solid Copper
    • Number of Conductors: 8
    • Operating Temperature: 60 deg C
    • Sheath Color: Brown
    • Type: Type CL-2
    • Voltage Rating: 150 V
