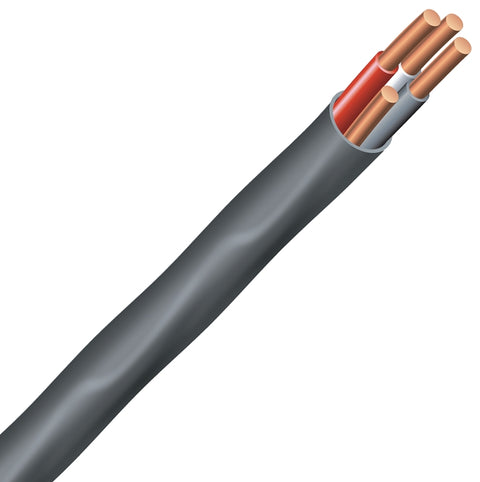

Southwire 6/3NM-WGX125 Sheathed Cable, 6 AWG Wire, 3 -Conductor, 125 ft L, Copper Conductor, PVC Insulation
Southwire 6/3NM-WGX125 Sheathed Cable, 6 AWG Wire, 3 -Conductor, 125 ft L, Copper Conductor, PVC Insulation
Southwire

Southwire 6/3NM-WGX125 Sheathed Cable, 6 AWG Wire, 3 -Conductor, 125 ft L, Copper Conductor, PVC Insulation

Our Item #: VORG4444436 UPC: 032886263705
Delivery i
3-5 Business Days
140 available
Ship to Store i
Pickup in 2-4 days
18 available
$555.27 $643.75you save $88.48
Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the National Electric Code Article 336. Dwellings not exceeding 3 floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.
Unit: L FT
UPC: 032886263705
Model Number: 6/3NM-WGX125
Southwire 6/3NM-WGX125 Sheathed Cable, 6 AWG Wire, 3 -Conductor, 125 ft L, Copper Conductor, PVC Insulation
$555.27$643.75

  • SIMpull jacket designed for easier pulling
  • Color-coded jacket

  • Conductor Insulation: PVC
  • Conductor Material: Copper
  • Current Rating: 55 A
  • Length: 125 in
  • Number of Conductors: 3
  • Operating Temperature: 90 deg C
  • Sheath Color: Black
  • Sheath Material: Nylon
  • Strands per Conductor: 7
  • Type: NM-B
  • Voltage Rating: 600 V
  • Wire Size: 6 AWG
