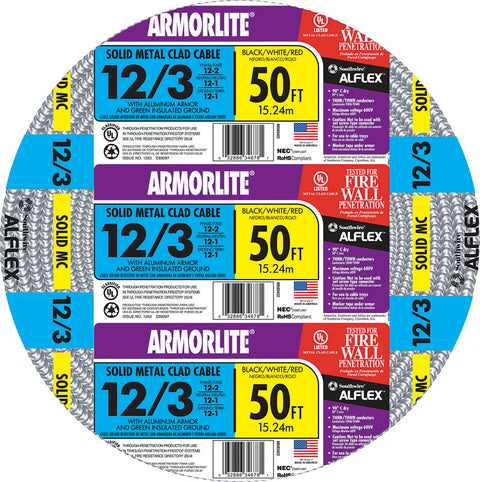

Southwire 50 ft. 12/3 Aluminum Armored MC Cable Black/White/Green/Red
Southwire Retail Sales

Southwire 50 ft. 12/3 Aluminum Armored MC Cable Black/White/Green/Red

Our Item #: VSHE3292620 UPC: 032886346781
Store Pickup i
Today
2 in stock
$99.99 $109.99you save $10.00

Southwire 50 ft. 12/3 Aluminum Armored MC Cable Black/White/Green/Red

  • Brand Name: Southwire
  • Wire Length: 50 ft.
  • Stranded or Solid: Solid
  • Cable or Wire Type: Aluminum Armored MC
  • Product Type: Cable
  • Gauge/Conductors: 12/3
  • Temperature Rating: 90
  • Flame Retardant: Yes
  • Jacket Material: Aluminum
  • Voltage Rating: 600 volt
  • Direct Burial: Yes
  • Color: Black/Green/Red/White
  • Ground Material: Aluminum
  • Conductor Gauge: 12 Ga.
  • Wet Location Use: Yes
  • Number of Conductors: 3
  • UL Listed: Yes
  • Amp Rating: 20 amps
  • Indoor or Outdoor: Indoor
  • Conductor Material: Copper

    • Unit: EA
    UPC: 032886346781
    Model Number: 68583422
    Southwire 50 ft. 12/3 Aluminum Armored MC Cable Black/White/Green/Red
    $99.99$109.99

    • Fished or embedded in plaster
    • Concealed or exposed installations
    • Environmental air-handling spaces per NEC 300.22©
    • As aerial cable on a messenger
    • Installation in cable tray and approved raceways
    • Lightweight aluminum interlocked armor

    • Type: Metal Clad
    • Cable Size: 12 AWG
    • Length:
    • Number of Conductors: 3
    • Strands per Conductor:
    • Strand Size:
    • Conductor Material: Copper
    • Conductor Insulation: PVC
    • Stranded/Solid: Solid
    • Sheath Material:
    • Sheath Color:
    • Sheath Diameter: 0.527 in
    • Shielding:
    • Bedding Material:
    • Voltage Rating: 600 V
    • Current Rating: 20 A
    • Resistance:
    • Bend Radius:
    • Operating Temperature: 90 deg C
    • IP Rating:
    • Suitable for:
    • Includes:

    UL 83/1063/1569 Listed | Federal Specification A-A59544 (formerly J-C-30B)/IEEE 1202 (70/000 BTU/hr) Vertical Cable Tray Flame Test/NEC Certified
