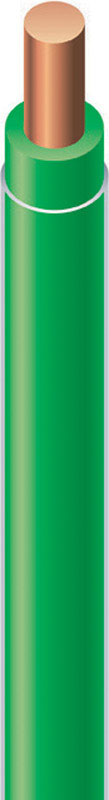

Southwire 12/1 THHN Solid Wire Green
Southwire Retail Sales

Southwire 12/1 THHN Solid Wire Green

Our Item #: VSHE33242 UPC: 032886224409
Store Pickup i
Today
1139 in stock
$0.69

Southwire 12/1 THHN Solid Wire Green

  • Brand Name: Southwire
  • Wire Length: Cut to Order
  • Gauge/Conductors: 12/1
  • Stranded or Solid: Solid
  • Cable or Wire Type: THHN
  • Product Type: Building Wire
  • Flame Retardant: Yes
  • Ground Material: Copper
  • Jacket Material: Nylon
  • Wet Location Use: Yes
  • Amp Rating: 20 amps
  • Voltage Rating: 600 volt
  • Indoor or Outdoor: Indoor
  • Color: Green
  • UL Listed: Yes
  • Conductor Gauge: 12 Ga.
  • Insulation Material: PVC: Thermoplastic
  • Conductor Material: Copper
  • Direct Burial: No
  • Number of Conductors: 1
  • Temperature Rating: 90 degree Celsius

    • Unit: FT
    UPC: 032886224409
    Model Number: 11591501
    Southwire 12/1 THHN Solid Wire Green
    $0.69

    Price is Per Foot

    • Type: THHN
    • Wire Size: 12 AWG
    • Length: 500 ft
    • Number of Conductors: 1
    • Strands per Conductor: 1
    • Strand Size:
    • Conductor Material: Copper
    • Conductor Insulation: Thermoplastic
    • Stranded/Solid: Solid
    • Sheath Material: Nylon
    • Sheath Color: Green
    • Sheath Diameter: 118 mil
    • Shielding:
    • Bedding Material:
    • Voltage Rating: 600 V
    • Current Rating: 20 A
    • Resistance:
    • Bend Radius:
    • Operating Temperature: 90 deg C
    • IP Rating:
    • Suitable for:
    • Includes:

    ASTM B3/B8/B787 Specified | CSA C22.2 Certified | Federal A-A-59544 Specified | NOM Certified | RoHS/REACH Compliant | UL Standards 83/758/1063/1581 Listed
