Southwire 1 in. Dia. x 1 ft. L Flexible Electrical Conduit LFNC-B Thermoplastic
Southwire Retail Sales

Southwire 1 in. Dia. x 1 ft. L Flexible Electrical Conduit LFNC-B Thermoplastic

Our Item #: VSHE3297058 UPC: 032886042775
Store Pickup i
Today
69 in stock
$2.39

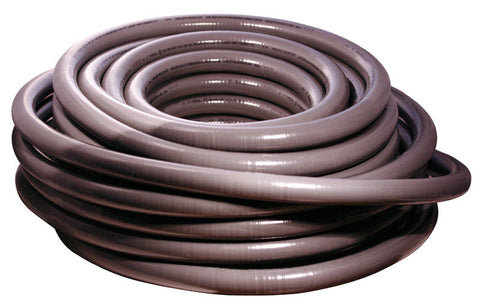

Southwire 1 in. Dia. x 1 ft. L Flexible Electrical Conduit LFNC-B Thermoplastic

  • Brand Name: Southwire
  • Diameter: 1 in.
  • Length: 1 ft.
  • Material: Thermoplastic
  • Conduit Compatibility: LFNC-B
  • Product Type: Flexible Electrical Conduit
  • UL Listed: Yes
  • Application: Used in Industrial And Commercial Applications
  • Maximum Voltage: 600 volts
  • Packaging Type: Pack
  • "SOUTHWIRE" ULTRATITE FLEXIBLE CONDUIT
  • 1" X 100 ft.
  • NM = Non-metallic
  • For dry locations
  • For direct burial and encased concrete
  • Highly flexible
  • Crush resistant
  • Easy wiring
  • Replaces Ace no. 3292935

    • Unit: FT
    UPC: 032886042775
    Model Number: 55094401
    Southwire 1 in. Dia. x 1 ft. L Flexible Electrical Conduit LFNC-B Thermoplastic
    $2.39

    • A protective combination of thermoplastic materials formed into a conduit or raceway which seals out water, liquids, abrasives, alcohol, coolants, corrosive fumes and gases
    • Smooth interior for easy wire pulling
    • UV, sunlight-resistant jacket
    • Rated for temperature range of -30 to 80 deg C, 60 deg C oil
    • Accepts standard liquidtight fittings for use with LFNC-B

    • Type: Flexible
    • Trade Size: 1 in
    • Inside Diameter: 1.041 in
    • Outside Diameter: 1.31 in
    • Wall Thickness:
    • Connection Type:
    • Maximum Cable Diameter:
    • Minimum Cable Diameter:
    • Bend Angle:
    • Coating Material:
    • Schedule Rating:
    • Material: PVC
    • Color: Gray
    • Finish:
    • Length: 100 ft
    • Operating Temperature: -30 to 80 deg C
    • Suitable for:
    • Includes:

    UL Listed | CSA/NEC Certified | ANSI Specified | REACH/RoHS-2 Compliant
