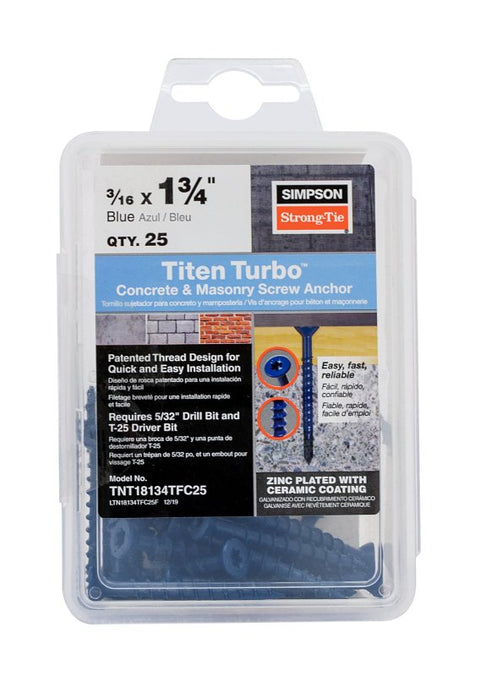

Simpson Strong-Tie Titen Turbo TNT18134TFC25 Screw Anchor, 3/16 in Dia, 1-3/4 in L, Carbon Steel, Zinc Plated
Simpson Strong-Tie

Simpson Strong-Tie Titen Turbo TNT18134TFC25 Screw Anchor, 3/16 in Dia, 1-3/4 in L, Carbon Steel, Zinc Plated

Our Item #: VORG7970866 UPC: 707392010906
Delivery i
3-5 Business Days
139 available
Ship to Store i
Pickup in 2-4 days
23 available
$7.24 $10.15you save $2.91
The Titen Turbo screw anchor features an innovative Torque Reduction Channel to trap drilling dust where it can't obstruct thread action, significantly reducing binding, stripping and snapping without compromising strength. The patented reverse thread design enables smooth driving with less torque while providing great holding power. The Torque Reduction Channel also allows more space for dust to help prevent anchors from bottoming out in smaller-diameter screw holes. The Titen Turbo screw anchors feature a serrated leading edge to cut into concrete or masonry and a pointed tip for fast, easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Unit: PK25
UPC: 707392010906
Model Number: TNT18134TFC25
Simpson Strong-Tie Titen Turbo TNT18134TFC25 Screw Anchor, 3/16 in Dia, 1-3/4 in L, Carbon Steel, Zinc Plated
$7.24$10.15

  • Torque reduction channel that traps dust where it canâ€t obstruct the thread action, reducing the likelihood of binding in the hole (patent pending)
  • Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from predrilled holes (IAPMO UES ER-712)
  • Serrated screw point for easier starts when fastening wood
  • Matched-tolerance bit not required, use a standard ANSI drill bit for installation
  • Zinc plated with a baked-on ceramic coating
  • Designed for installation with a cordless drill or impact driver
  • Use in dry interior environments only
  • T25 6-lobe flat head style for a smooth installed profile

  • Color: Standard Blue
  • Diameter: 3/16 in
  • Drill Size: 5/32 in
  • Drive Type: T25 6-Lobe
  • Finish: Zinc Plated
  • Head Type: Flat
  • Includes: (1) T25 Drive Bit
  • Length: 1-3/4
  • Material: Carbon Steel
  • Minimum Concrete Thickness: 3-1/4 in
  • Minimum Embedment Depth: 1-3/4 in
  • Shear Strength: 475 lb
  • Tensile Strength: 125000 psi
