Simpson Strong-Tie

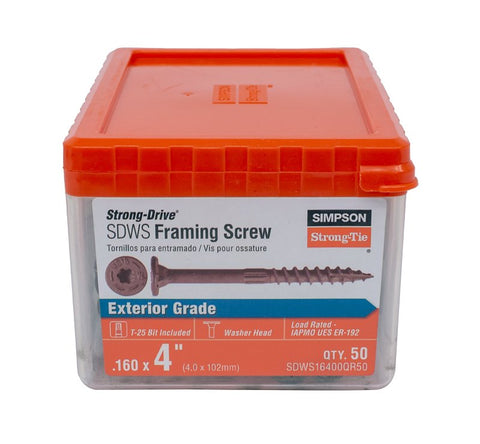

Simpson Strong-Tie Strong-Drive SDWS Series SDWS16400QR50 Framing Screw, 4 in L, Serrated Thread, Low-Profile Head

Our Item #: VORG7501463 UPC: 707392010401
Delivery i
3-5 Business Days
97 available
Ship to Store i
Pickup in 2-4 days
28 available
Sale price $16.39 Regular price$18.95you save $2.56
The SDWS framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is great to nails in holding power and pull-out resistance. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC and IBC code requirements for most common wood framing applications. The screw has a SawTooth point that makes for fast installations with reduced torque without pre-drilling and its specially designed head countersinks easily to provide a clean, flush finish. The T25 bit holds the 6-lobe recess tightly for more secure drive control.
Unit: BX50
UPC: 707392010401
Model Number: SDWS16400QR50
Simpson Strong-Tie Strong-Drive SDWS Series SDWS16400QR50 Framing Screw, 4 in L, Serrated Thread, Low-Profile Head
$16.39$18.95

  • Large head with underhead box nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.44 in head Dia)
  • SawTooth Type 17 tip for quick starts with no pre-drilling
  • Serrated threads reduce installation torque for easier driving
  • The six-lobe drive reduces driver bit cam-outs, resulting in easier installations and longer bit life
  • Driver bit included (BIT25T-2)
  • Quik guard coating provides protection in indoor and outdoor applications

  • Applicable Materials: Wood
  • Color: Tan
  • Drive Size: T25
  • Drive Type: 6-Lobe
  • Finish: Quik Guard-Coated
  • Head Type: Low-Profile
  • Includes: BIT25T-2-R2 Driver Bit
  • Length: 4
  • Material: Carbon Steel
  • Package Quantity: 50 PK
  • Point Type: Sawtooth Type 17
  • Shear Strength: 3.8 kN
  • Tensile Strength: 6.1 kN
  • Thread Length: 2-1/2 in
  • Thread Type: Serrated
