Simpson Strong-Tie
Simpson Strong-Tie Strong-Drive SDWC SDWC15600-KT Truss Screw Kit, 6 in L, Cap Head, 6-Lobe Drive, Type-17 Point, Orange
Regular price
$48.76
Sale price$56.15you save $7.39

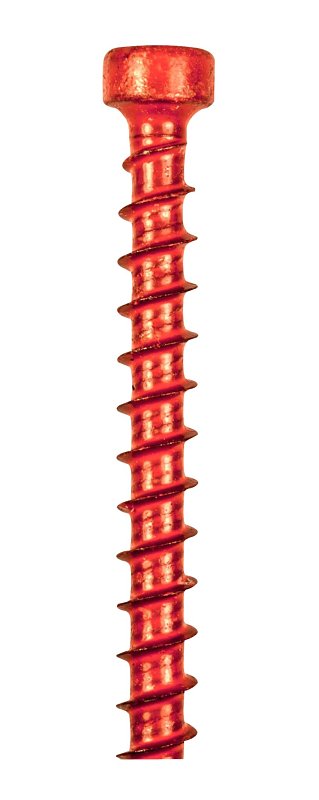

The Strong-Drive SDWC truss screw provides a stud-to-bottom plate or stud-to-top-plate connection as well as fastening trusses and rafters to top-plates. The full-threaded shank engages the entire length of the fastener, providing a secure connection. The SDWC is tested in accordance with ICC-ES AC233 (screw) and AC13 (wall assembly and roof-to-wall assembly) for uplift and lateral loads between wall plates and vertical wall framing and between the top-plate and the roof rafters or trusses.
Unit: BX 50
UPC: 746056548027
Model Number: SDWC15600-KT
Unit: BX 50
UPC: 746056548027
Model Number: SDWC15600-KT
Simpson Strong-Tie Strong-Drive SDWC SDWC15600-KT Truss Screw Kit, 6 in L, Cap Head, 6-Lobe Drive, Type-17 Point, Orange
$48.76$56.15
Features
- Cap-style head countersinks fully into the double-top-plate to avoid interference with drywall or finish trades
- Wide tolerance on installation angle makes it easy to install the SDWC correctly
- Can be installed from inside the structure, eliminating exterior work on the upper stories and enhancing job safety
- Fastening can be performed before or after exterior sheathing is applied for added flexibility
- Type-17 point for faster starts and easier driving
- Orange color for easy inspection
- Matched-tolerance driver bit (included) engages fastener head securely to allow one-handed driving
More Specifications
- Applicable Materials: Wood
- Color: Orange
- Drive Size: T30
- Drive Type: 6-Lobe
- Finish: Zinc
- Head Type: Cap
- Includes: (50) Strong-Drive SDWC Screws (1) Matched-Tolerance Driver Bit and (1) Metal Installation Guide Tool
- Length: 6
- Material: Steel
- Package Quantity: 50 PK
- Point Type: Type-17
- Thread Length: 5-3/4 in
