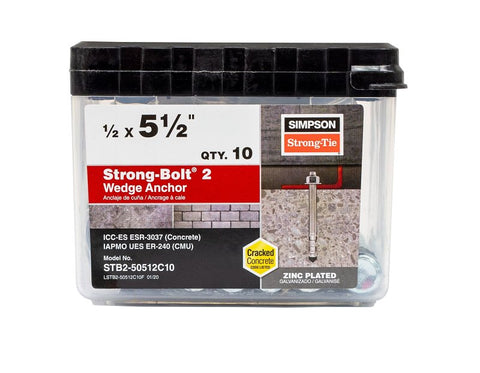

Simpson Strong-Tie Strong-Bolt 2 STB2-50512C10 Wedge Anchor, 1/2 in Dia, 5-1/2 in L, Carbon Steel, Zinc Plated
Simpson Strong-Tie

Simpson Strong-Tie Strong-Bolt 2 STB2-50512C10 Wedge Anchor, 1/2 in Dia, 5-1/2 in L, Carbon Steel, Zinc Plated

Our Item #: VORG8229627 UPC: 707392013259
Delivery i
3-5 Business Days
72 available
Ship to Store i
Pickup in 2-4 days
5 available
$13.38 $20.59you save $7.21
Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
Unit: BX10
UPC: 707392013259
Model Number: STB2-50512C10
Simpson Strong-Tie Strong-Bolt 2 STB2-50512C10 Wedge Anchor, 1/2 in Dia, 5-1/2 in L, Carbon Steel, Zinc Plated
$13.38$20.59

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 in and 3-1/4 in
  • Tested per ACI355.2 and AC193
  • Made from zinc plated carbon steel

  • Color: Silver
  • Diameter: 1/2 in
  • Drill Size: 1/2 in
  • Finish: Zinc Plated
  • Length: 5-1/2
  • Material: Carbon Steel
  • Minimum Concrete Thickness: 3-1/4 in
  • Minimum Embedment Depth: 2-3/4 to 4-1/2 in
  • Shear Strength: 2040 to 4120 lb
  • Tensile Strength: 115000 psi
  • Thread Length: 3-13/16 in
