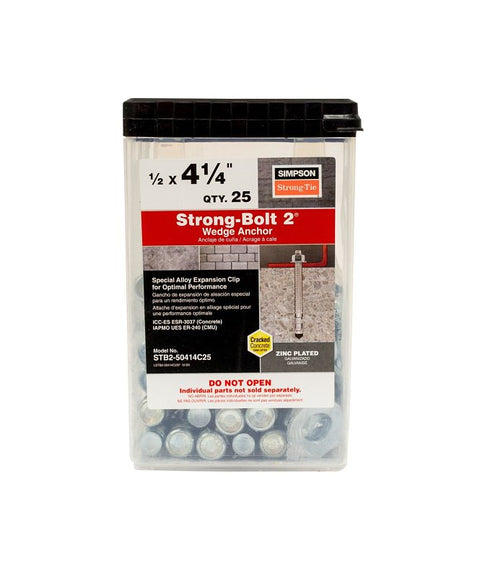

Simpson Strong-Tie Strong-Bolt 2 STB2-50414C25 Wedge Anchor, 1/2 in Dia, 4-1/4 in L, Carbon Steel, Zinc Plated
Simpson Strong-Tie

Simpson Strong-Tie Strong-Bolt 2 STB2-50414C25 Wedge Anchor, 1/2 in Dia, 4-1/4 in L, Carbon Steel, Zinc Plated

Our Item #: VORG8229601 UPC: 707392013242
Delivery i
3-5 Business Days
61 available
Ship to Store i
Pickup in 2-4 days
8 available
$25.61 $33.99you save $8.38
Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
Unit: BX25
UPC: 707392013242
Model Number: STB2-50414C25
Simpson Strong-Tie Strong-Bolt 2 STB2-50414C25 Wedge Anchor, 1/2 in Dia, 4-1/4 in L, Carbon Steel, Zinc Plated
$25.61$33.99

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 in and 3-1/4 in
  • Tested per ACI355.2 and AC193
  • Made from zinc plated carbon steel

  • Color: Silver
  • Diameter: 1/2 in
  • Drill Size: 1/2 in
  • Finish: Zinc Plated
  • Length: 4-1/4
  • Material: Carbon Steel
  • Minimum Concrete Thickness: 3-1/4 in
  • Minimum Embedment Depth: 2-3/4 to 4-1/2 in
  • Shear Strength: 2040 to 4120 lb
  • Tensile Strength: 115000 psi
  • Thread Length: 2-9/16 in
