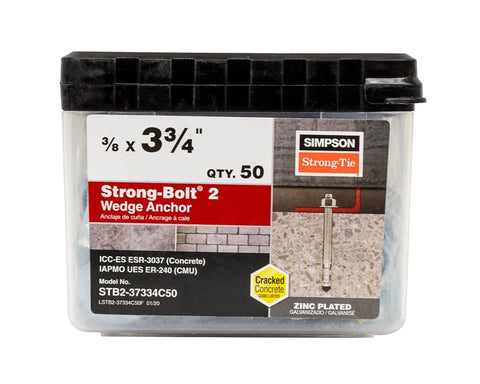

Simpson Strong-Tie Strong-Bolt 2 STB2-37334C50 Wedge Anchor, 3/8 in Dia, 3-3/4 in L, Carbon Steel, Zinc Plated
Simpson Strong-Tie

Simpson Strong-Tie Strong-Bolt 2 STB2-37334C50 Wedge Anchor, 3/8 in Dia, 3-3/4 in L, Carbon Steel, Zinc Plated

Our Item #: VORG8229544 UPC: 707392013198
Delivery i
3-5 Business Days
81 available
Ship to Store i
Pickup in 2-4 days
6 available
$25.84 $29.79you save $3.95
Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
Unit: BX50
UPC: 707392013198
Model Number: STB2-37334C50
Simpson Strong-Tie Strong-Bolt 2 STB2-37334C50 Wedge Anchor, 3/8 in Dia, 3-3/4 in L, Carbon Steel, Zinc Plated
$25.84$29.79

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 in and 3-1/4 in
  • Tested per ACI355.2 and AC193
  • Made from zinc plated carbon steel

  • Color: Silver
  • Diameter: 3/8 in
  • Drill Size: 3/8 in
  • Finish: Zinc Plated
  • Length: 3-3/4
  • Material: Carbon Steel
  • Minimum Concrete Thickness: 3-1/4 in
  • Minimum Embedment Depth: 2 to 3-3/8 in
  • Shear Strength: 1040 to 3490 lb
  • Tensile Strength: 115000 psi
  • Thread Length: 2-5/16 in
