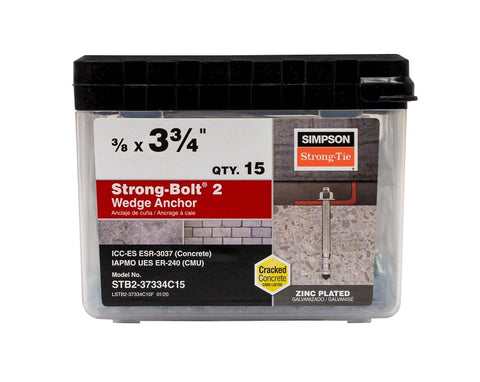

Simpson Strong-Tie Strong-Bolt 2 STB2-37334C15 Wedge Anchor, 3/8 in Dia, 3-3/4 in L, Carbon Steel, Zinc Plated
Sale price
$14.66
Regular price$19.05you save $4.39
Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
Unit: BX15
UPC: 707392013181
Model Number: STB2-37334C15
Unit: BX15
UPC: 707392013181
Model Number: STB2-37334C15
Simpson Strong-Tie Strong-Bolt 2 STB2-37334C15 Wedge Anchor, 3/8 in Dia, 3-3/4 in L, Carbon Steel, Zinc Plated
$14.66$19.05
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 in and 3-1/4 in
- Tested per ACI355.2 and AC193
- Made from zinc plated carbon steel
- Color: Silver
- Diameter: 3/8 in
- Drill Size: 3/8 in
- Finish: Zinc Plated
- Length: 3-3/4
- Material: Carbon Steel
- Minimum Concrete Thickness: 3-1/4 in
- Minimum Embedment Depth: 2 to 3-3/8 in
- Shear Strength: 1040 to 3490 lb
- Tensile Strength: 115000 psi
- Thread Length: 2-5/16 in
