Simpson Strong-Tie PDPAWL PDPAWL-150 Drive Pin, 0.157 in Dia Shank, 1-1/2 in L, Steel, Galvanized/Zinc
Simpson Strong-Tie

Simpson Strong-Tie PDPAWL PDPAWL-150 Drive Pin, 0.157 in Dia Shank, 1-1/2 in L, Steel, Galvanized/Zinc

Our Item #: VORG7497555 UPC: 707392583912
Delivery i
3-5 Business Days
19172 available
Ship to Store i
Pickup in 2-4 days
24 available
$16.77 $25.79you save $9.02

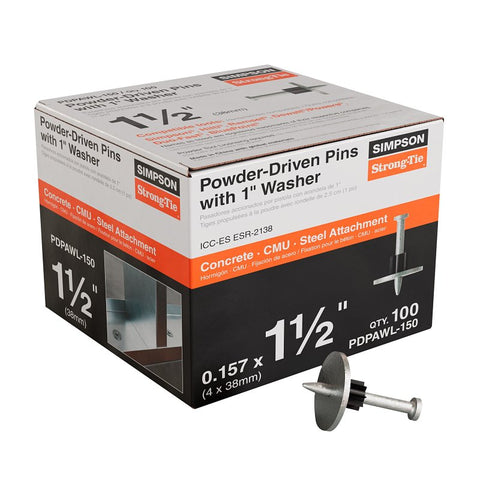

The PDPAWL is a powder-actuated washered pin designed to fasten building components to concrete, steel and CMU. The PDPAWL consists of a hardened-steel PDPA pin preassembled with a 1″ washer that provides additional bearing surface for enhanced upload resistance. The PDPAWL is designed for use with Simpson Strong-Tie powder-actuated tool systems as well as other common tools.
Unit: BX100
UPC: 707392583912
Model Number: PDPAWL-150
Simpson Strong-Tie PDPAWL PDPAWL-150 Drive Pin, 0.157 in Dia Shank, 1-1/2 in L, Steel, Galvanized/Zinc
$16.77$25.79

  • The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
  • Compatible with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
  • Mechanically galvanized carbon steel pin

  • Finish: Galvanized/Zinc
  • Head diameter: 0.3 in
  • Length: 1-1/2
  • Material: Steel
  • Shank Diameter: 0.157 in
  • Suitable for: PTP-27L Premium Tool PTP-27S Premium Powder-Actuated Tool PT-27 PT-22APT-22HA General-Purpose Tools PT-22P Tool and Piston and PT-22GS Powder-Actuated Tools
