Simpson Strong-Tie PDPAWL PDPAWL-100 Drive Pin, 0.157 in Dia Shank, 1 in L, Steel, Galvanized/Zinc
Simpson Strong-Tie

Simpson Strong-Tie PDPAWL PDPAWL-100 Drive Pin, 0.157 in Dia Shank, 1 in L, Steel, Galvanized/Zinc

Our Item #: VORG7497522 UPC: 707392460015
Delivery i
3-5 Business Days
2015 available
Ship to Store i
Pickup in 2-4 days
512 available
$16.86 $25.95you save $9.09

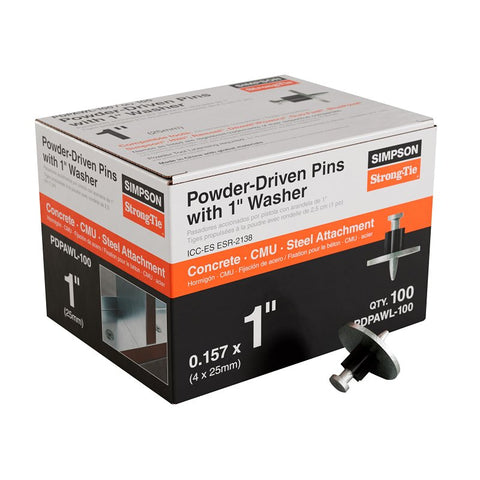

The PDPAWL is a powder-actuated washered pin designed to fasten building components to concrete, steel and CMU. The PDPAWL consists of a hardened-steel PDPA pin preassembled with a 1″ washer that provides additional bearing surface for enhanced upload resistance. The PDPAWL is designed for use with Simpson Strong-Tie powder-actuated tool systems as well as other common tools.
Unit: BX100
UPC: 707392460015
Model Number: PDPAWL-100
Simpson Strong-Tie PDPAWL PDPAWL-100 Drive Pin, 0.157 in Dia Shank, 1 in L, Steel, Galvanized/Zinc
$16.86$25.95

  • The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
  • Compatible with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
  • Mechanically galvanized carbon steel pin

  • Finish: Galvanized/Zinc
  • Head diameter: 0.3 in
  • Length: 1
  • Material: Steel
  • Shank Diameter: 0.157 in
  • Suitable for: PTP-27L Premium Tool PTP-27S Premium Powder-Actuated Tool PT-27 PT-22APT-22HA General-Purpose Tools PT-22P Tool and Piston and PT-22GS Powder-Actuated Tools
