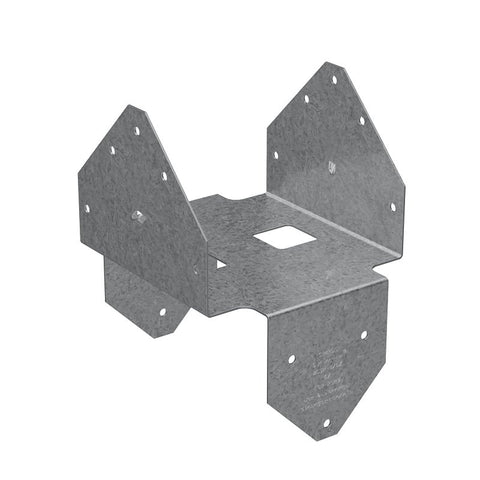

Simpson Strong-Tie BCS BCS2-3/6Z Post Cap, 2 to 3 x 6 in Post/Joist, Steel, ZMAX, Pack of 10
Simpson Strong-Tie

Simpson Strong-Tie BCS BCS2-3/6Z Post Cap, 2 to 3 x 6 in Post/Joist, Steel, ZMAX, Pack of 10

Our Item #: VORG3238060 UPC: 707392780106
Delivery i
3-5 Business Days
31 available
$150.41 $203.50you save $53.09
The BCS is designed to connect a multi-ply member beam to a post. The dimensions of this post cap accommodate the narrower width of multiple 2X members on top of the post. The BCS provides both lateral and uplift support and features double-shear nailing that distributes the load through two points for optimal strength.
Unit: EA
UPC: 707392780106
Model Number: BCS2-3/6Z
Simpson Strong-Tie BCS BCS2-3/6Z Post Cap, 2 to 3 x 6 in Post/Joist, Steel, ZMAX, Pack of 10
$150.41$203.50

  • Provides a positive connection for a post to a wood deck
  • Stronger than angled nailing or screw fastening
  • Reduces the chance of the post splitting and eliminates nailing into end grain
  • Not recommended for non top-supported installations (such as fences or unbraced carports)
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Opposing flanges provide increased lateral resistance
  • Sized specifically for multi-2X widths
  • Do not install bolts into pilot holes
  • Install dome nails on beam; drive nails at an angle through the beam into the post below to achieve the table loads

  • Fastener Type: Nail
  • Finish: ZMAX
  • Length: 4-3/8
  • Material: Steel
  • Nail Diameter: 0.162 in
  • Post/Joist Size: 2 to 3 x 6 in
  • Width: 4-5/8
