Simpson Strong-Tie BC Series BC6Z Post Cap, Steel, ZMAX, 3-3/8 in H, 1/PK
Simpson Strong-Tie

Simpson Strong-Tie BC Series BC6Z Post Cap, Steel, ZMAX, 3-3/8 in H, 1/PK

Our Item #: VORG3238045 UPC: 707392817505
Delivery i
3-5 Business Days
426 available
Ship to Store i
Pickup in 2-4 days
159 available
$26.99 $34.19you save $7.20

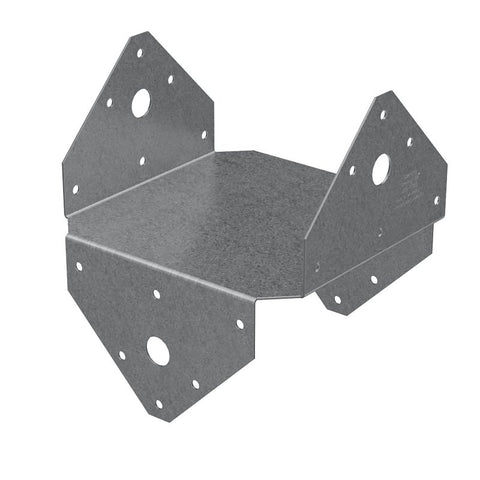

The BC post cap is designed to connect a beam to a post. The 18 ga material of this post cap makes it ideal for light-duty connections. The BC provides uplift and lateral resistance and includes sizes for both nominal and rough lumber.
Unit: EA
UPC: 707392817505
Model Number: BC6Z
Simpson Strong-Tie BC Series BC6Z Post Cap, Steel, ZMAX, 3-3/8 in H, 1/PK
$26.99$34.19

  • Provides a positive connection for a post to a wood deck
  • Stronger than angled nailing or screw fastening
  • Reduces the chance of the post splitting and eliminates nailing into end grain
  • Not recommended for non top-supported installations (such as fences or unbraced carports)
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated wood applications
  • Opposing flanges provide increased lateral resistance
  • Attains full allowable load using either common nail or pneumatic nail sizes
  • Do not install bolts into pilot holes
  • Install with 0.162 x 3-1/2 in nails or 0.162 x 2-1/2 in nails

  • Fastener Type: Nail
  • Finish: ZMAX
  • Length: 4-3/8
  • Material: Steel
  • Nail Diameter: 0.162 in
  • Width: 5-1/2
