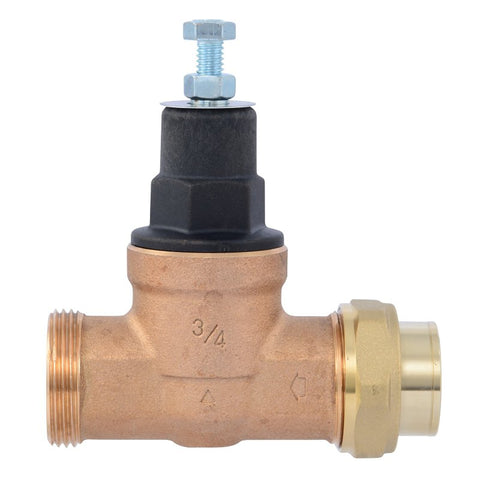

SharkBite EB45 Series PVA16P-SUTH-60 Pressure Regulating Valve, 3/4 in Connection, MNPT x FNPT, 10 to 70 psi Regulating
Sharkbite

SharkBite EB45 Series PVA16P-SUTH-60 Pressure Regulating Valve, 3/4 in Connection, MNPT x FNPT, 10 to 70 psi Regulating

Our Item #: VORG4989018 UPC: 697285110724
Delivery i
3-5 Business Days
303 available
Ship to Store i
Pickup in 2-4 days
53 available
$54.20 $68.05you save $13.85
The lead-free EB45 water pressure regulator features a half cartridge design that offers the performance of a high-end, cartridge-based valve and the price of a traditional regulator. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge-based valve. The EB45 pressure regulator valve comes factory set at 60 psi but may be adjusted between 10 to 70 psi and includes an integrated back-check feature in case the pressure in the system exceeds the incoming pressure.
Unit: EA
UPC: 697285110724
Model Number: PVA16P-SUTH-60
SharkBite EB45 Series PVA16P-SUTH-60 Pressure Regulating Valve, 3/4 in Connection, MNPT x FNPT, 10 to 70 psi Regulating
$54.20$68.05

  • Additional Information: Poly Top Type
  • Body Material: Brass
  • Connection Size: 3/4 in
  • Connection Type: MNPT x FNPT
  • Dimensions: 4-3/16 in L x 1-47/64 in W
  • Media: Water
  • Operating Pressure: 400 psi
  • Regulating Pressure: 10 to 70 psi
  • Softgoods material: EPDM/Polyphenylene
  • Temperature Rating: 33 to 180 deg F
  • Trim Material: Iron/Stainless Steel/Steel
