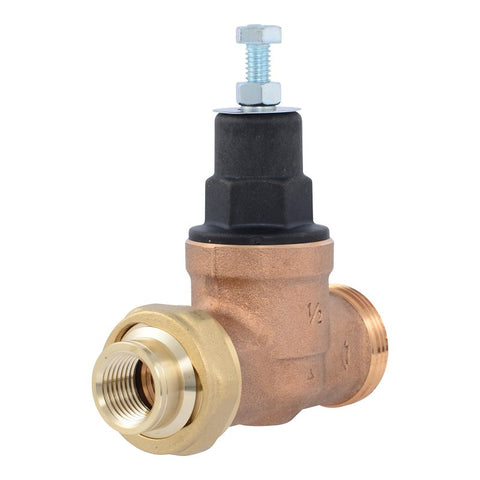

SharkBite EB45 Series PVA08P-SUTH-60 Pressure Regulating Valve, 1/2 in Connection, MNPT x FNPT, 10 to 70 psi Regulating
Sharkbite

SharkBite EB45 Series PVA08P-SUTH-60 Pressure Regulating Valve, 1/2 in Connection, MNPT x FNPT, 10 to 70 psi Regulating

Our Item #: VORG4988804 UPC: 697285110601
Delivery i
3-5 Business Days
81 available
Ship to Store i
Pickup in 2-4 days
4 available
$50.59 $63.49you save $12.90
The lead-free EB45 water pressure regulator features a half cartridge design that offers the performance of a high-end, cartridge-based valve and the price of a traditional regulator. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge-based valve. The EB45 pressure regulator valve comes factory set at 60 psi but may be adjusted between 10 to 70 psi and includes an integrated back-check feature in case the pressure in the system exceeds the incoming pressure.
Unit: EA
UPC: 697285110601
Model Number: PVA08P-SUTH-60
SharkBite EB45 Series PVA08P-SUTH-60 Pressure Regulating Valve, 1/2 in Connection, MNPT x FNPT, 10 to 70 psi Regulating
$50.59$63.49

  • Additional Information: Poly Top Type
  • Body Material: Brass
  • Connection Size: 1/2 in
  • Connection Type: MNPT x FNPT
  • Dimensions: 4 in L x 1-47/64 in W
  • Media: Water
  • Operating Pressure: 400 psi
  • Regulating Pressure: 10 to 70 psi
  • Softgoods material: EPDM/Polyphenylene
  • Temperature Rating: 33 to 180 deg F
  • Trim Material: Iron/Stainless Steel/Steel
