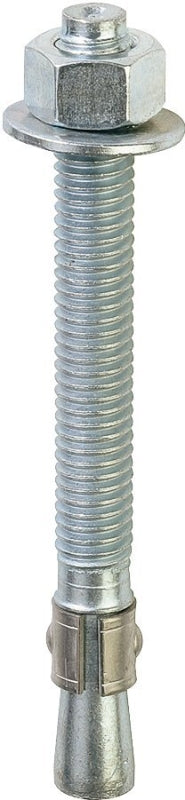

Red Head 12019 Wedge Anchor, 1/2-13 Thread, 1/2 in Dia, 5-1/2 in OAL, Carbon Steel, Zinc, 10/PK

Our Item #: VORG2148583 UPC: 092097120198
Delivery i
3-5 Business Days
58 available
Ship to Store i
Pickup in 2-4 days
4 available
Regular price $20.97 Sale price$27.69you save $6.72
Trubolt Wedge anchors feature a stainless steel expansion clip, threaded stud body, nut and washer. Anchor bodies are made of plated carbon steel, hot-dipped galvanized carbon steel, type 304 stainless steel or type 316 stainless steel as identified in the drawings or other notations. The exposed end of the anchor is stamped to identify anchor length. Stampings should be preserved during installation for any subsequent embedment verification. Use carbide tipped hammer drill bits made in accordance with ANSI B212.15-1994 to install anchors. Anchors are tested to ACI 355.2 and ICC-ES AC193.
Unit: PK 10
UPC: 092097120198
Model Number: 12019
Red Head 12019 Wedge Anchor, 1/2-13 Thread, 1/2 in Dia, 5-1/2 in OAL, Carbon Steel, Zinc, 10/PK
$20.97$27.69

  • Versatile fully threaded design is standard on sizes up to 3/4 in Dia and 10 in L
  • Anchor diameter equals hole diameter
  • 360 deg contact with concrete assures full expansion for reliable working loads
  • Non bottom-bearing, may be used in hole depth exceeding anchor length
  • Can be installed through the work fixture, eliminating hole spotting
  • Inspectable torque values, indicating proper installation

  • Diameter: 1/2 in
  • Drill Size: 1/2 in
  • Finish: Zinc
  • Head Type: Hex Nut
  • Includes: (10) Wedge Anchors
  • Material: Carbon Steel
  • Maximum Work Thickness: 2-3/4 in
  • Minimum Embedment Depth: 1-7/8 in
  • Overall Length: 5-1/2 in
  • Shear Strength: 8160 lb Solid Concrete 6440 lb Lightweight Concrete
  • Tensile Strength: 10820 lb Solid Concrete 4800 lb Lightweight Concrete
  • Thread Length: 4 in
  • Thread Size: 1/2-13
