Prime-Line D 1526 Roller Assembly, 1-1/4 in Dia Roller, 5/16 in W Roller, Steel, 1-Roller, K-Tab Mounting
Prime-Line D 1526 Roller Assembly, 1-1/4 in Dia Roller, 5/16 in W Roller, Steel, 1-Roller, K-Tab Mounting
Prime-Line D 1526 Roller Assembly, 1-1/4 in Dia Roller, 5/16 in W Roller, Steel, 1-Roller, K-Tab Mounting
Prime Line Products

Prime-Line D 1526 Roller Assembly, 1-1/4 in Dia Roller, 5/16 in W Roller, Steel, 1-Roller, K-Tab Mounting

Our Item #: VORG0802934 UPC: 49793015266
Delivery i
3-5 Business Days
57 available
$6.96 $9.65you save $2.69

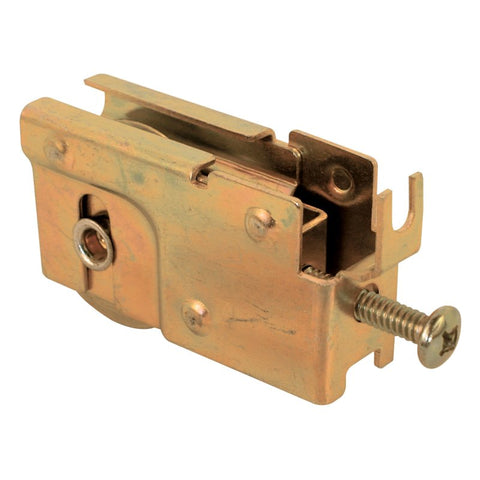

This is a C-tab patio door roller assembly with a 1-1/4 in Dia concave or grooved, steel ball bearing roller. as the C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two-sides together. The housing is 23/32 in W and 1-3/16 in H with a dimple width of 7/8 in and is most often used by Solar Industries and a variety of other patio door manufacturers.
Unit: CD
UPC: 049793015266
Model Number: D1526
Prime-Line D 1526 Roller Assembly, 1-1/4 in Dia Roller, 5/16 in W Roller, Steel, 1-Roller, K-Tab Mounting
$6.96$9.65

  • Used by Solar Industries and several other metal-framed patio door manufacturers
  • Steel housing and ball bearing roller
  • The C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two-sides together
  • Easy-to-install
  • A Phillips head screwdriver is required for installation

  • Bearing Type: Ball
  • Dimensions: 2-5/16 in L x 23/32 in W x 1-3/16 in H
  • Finish: Gold
  • Material: Steel
  • Mounting Type: K-Tab
  • Number of Rollers: 1
  • Roller Diameter: 1-1/4 in
  • Roller Edge Type: Concave
  • Roller Width: 5/16 in
  • Suitable for: Pacific and Other Glass Doors
