Prime-Line B 569 Screen Door Corner Insert, Zinc
Prime-Line B 569 Screen Door Corner Insert, Zinc
Prime Line Products

Prime-Line B 569 Screen Door Corner Insert, Zinc

Our Item #: VORG3053436 UPC: 049793005694
Delivery i
3-5 Business Days
130 available
$6.40 $9.29you save $2.89

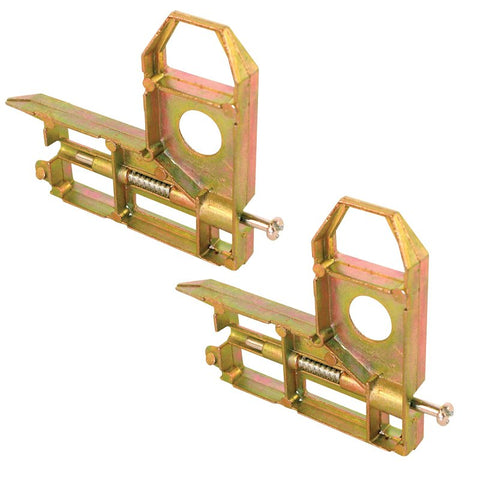

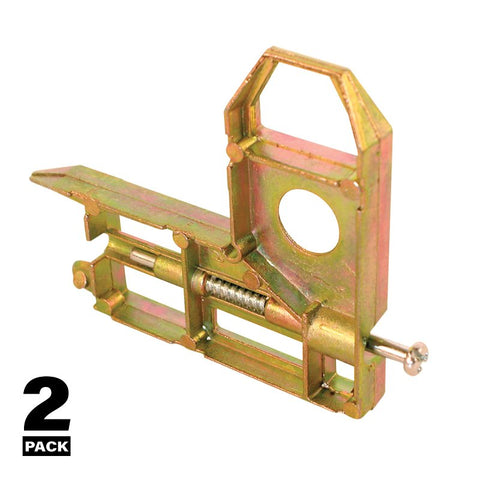

It is die-cast with an adjustment screw that would adjust the B 515 style roller that has been installed onto the corner's roller pivot arms. The die-cast corner fits into the sliding screen door frame holding the bottom or top rails and the side stiles together.
Unit: PK 2
UPC: 049793005694
Model Number: B 569
Prime-Line B 569 Screen Door Corner Insert, Zinc
$6.40$9.29

  • Uses B 515 style roller assemblies
  • Die-Cast screen frame corner

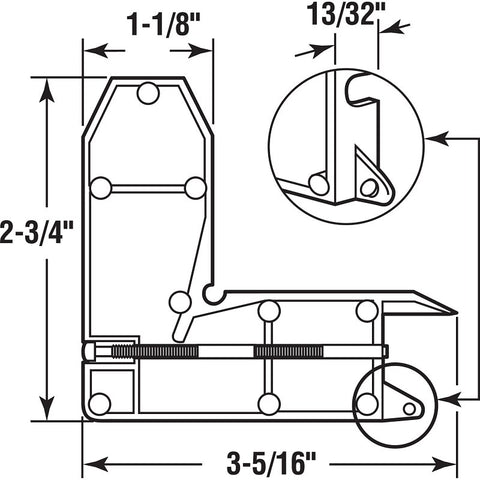

  • Corner legs are 1-1/8 in wide by 13/32 in thick
  • Corner holds the top or bottom rails to the side stiles together
  • Adjusting screw
  • Corner provides installation point for Arcadia style rollers

  • Dimensions: 2-3/4 in H x 3-5/16 in W
  • Finish: Zinc
  • Suitable for: 45 deg Miter Cut Doors
