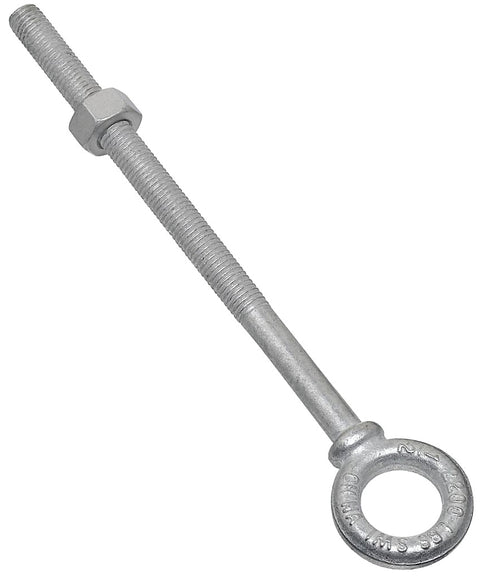

National Hardware N245-175 Eye Bolt, 1/2-13 Thread, 5-7/8 in L Thread, 1 in ID x 1-3/4 in OD Dia Eye, 8 in L Shank
National Hardware N245-175 Eye Bolt, 1/2-13 Thread, 5-7/8 in L Thread, 1 in ID x 1-3/4 in OD Dia Eye, 8 in L Shank
National Hardware

National Hardware N245-175 Eye Bolt, 1/2-13 Thread, 5-7/8 in L Thread, 1 in ID x 1-3/4 in OD Dia Eye, 8 in L Shank

Our Item #: VORG8889255 UPC: 038613245174
Delivery i
3-5 Business Days
799 available
Ship to Store i
Pickup in 2-4 days
143 available
$13.63 $17.75you save $4.12
General-purpose eye bolt used where high strength is required. Ideal for marine and agricultural applications. Has shoulder so bolt can be tightened in place. Forged steel for superior strength. Galvanized for corrosion resistance. With hex nut.
Unit: EA
UPC: 038613245174
Model Number: N245-175
National Hardware N245-175 Eye Bolt, 1/2-13 Thread, 5-7/8 in L Thread, 1 in ID x 1-3/4 in OD Dia Eye, 8 in L Shank
$13.63$17.75

  • Designed with shoulder so that it can be tightened in place
  • Bar code label is color coded to identify wire size
  • Pintle punched for 5/16 in (1/2 in size) or 3/8 in (5/8 in size) bolts
  • Great strength (SWL) is clearly defined on label
  • When subjected to 312 hr of salt fog spray testing, zinc-plated hardware showed severe corrosion while hardware with WeatherGuard protection withstood these harsh conditions with very little deterioration

  • Eye Diameter: 1 in ID x 1-3/4 in OD
  • Includes: Hex Nut
  • Material: Galvanized Steel
  • Overall Length: 9-29/32 in
  • Shank Diameter: 1/2 in
  • Shank Length: 8 in
  • Thread Length: 5-7/8 in
  • Thread Size: 1/2-13
  • Working Load Limit: 2200 lb
