A P Products

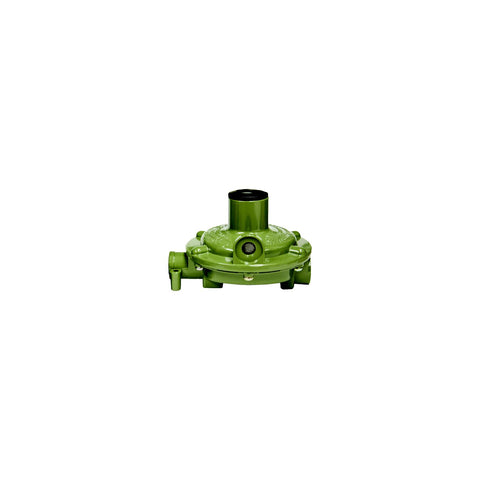

LOW PRESS REG 1/4X3/8FPT 9;00
Regular price
$18.79
The MEGR-230 single-stage regulators are approved for use in small portable applications and outdoor cooking appliances ulitizing low pressure.
UPC: 815505013413
Model Number: MEGR-230-90
- Type: Single Stage
- Orifice Diameter: 0.059 Diameter
- BTU Capacity: 140,000 BTU (based on 25 PSI inlet @ 9 W.C. delivery pressure)
- Max. Inlet Pressure: 250 PSI
- Inlet Connection: 1/4 FNPT
- Outlet Connection: 3/8" FNPT
- Exterior Finish: Green Wet Coat
- Diaphragm Type: Molded with O-Ring Bonnet / Body Seal
- Bonnet/Body Material: Die Cast Aluminum
- Listings: UL LISTED / UL 144
- Mounting Holes: 3-1/2" On Center
UPC: 815505013413
Model Number: MEGR-230-90
