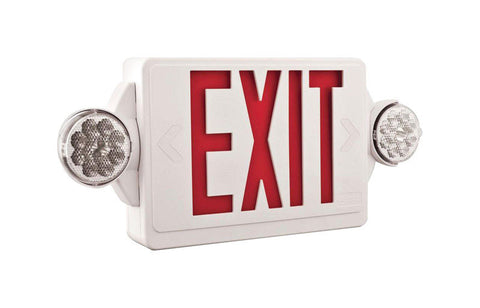

Lithonia Lighting Thermoplastic Indoor LED Lighted Exit Sign and Emergency Lights
Lithonia Lighting Thermoplastic Indoor LED Lighted Exit Sign and Emergency Lights
ACUITY BRANDS LIGHTING INC

Lithonia Lighting Thermoplastic Indoor LED Lighted Exit Sign and Emergency Lights

Our Item #: VSHE3561545 UPC: 745976254438
$89.99

Lithonia Lighting Thermoplastic Indoor LED Lighted Exit Sign and Emergency Lights

  • Brand Name: Lithonia Lighting
  • Material: Thermoplastic
  • Indoor or Outdoor: Indoor
  • Bulb Type: LED
  • Product Type: Lighted Exit Sign and Emergency Lights
  • Height: 9 in.
  • Depth: 4-3/4 in.
  • One Sided or Two Sided: One-Sided
  • Color: Red/White
  • Packaging Type: Boxed
  • Volts: 120/277 volt
  • UL Listed: Yes
  • Width: 19-1/4 in.
  • Battery Operated: Yes
  • Twin LED lamp heads operate in emergency (DC input) mode with 12 series-parallel white LEDs in each head
  • Provides redundant light sources to ensure emergency lighting performance
  • Ni-cad battery or HO battery options allow use with up to six LED lamp heads
  • Typical life of the exit LED lamp is 10 years
  • Edge connector on printed circuit board ensures long-term durability
  • Suitable for applications requiring both exit sign and unit equipment
  • 8-inch tall design is great for above-the-door applications and other tight fits
  • Optional high-output version with remote lamps are ideal for emergency egress lighting
  • Impact- and scratch-resistant thermoplastic housing
  • Universal mounting: top, end and back

    • Unit: EA
    UPC: 745976254438
    Model Number: LHQM LED R M6

    • The Quantum® LHQM LED is the perfect choice with space at a premium
    • The combination of exit and emergency lighting also has self-diagnostic option available
    • Suitable for applications requiring quick-installation of both exit sign and unit equipment with a streamlined design for above-the-door applications and other tight fits
    • The LHQM LED delivers 25 ft center-to-center spacing to meet the NFPA 101 life safety code with fewer fixtures
    • Impact and scratch-resistant thermoplastic housing
    • Universal mounting top, end and back
    • Test switch and status indicator
    • UL indoor damp location 50 to 104 deg F (10 to 40 deg C) listed standard
    • For use with dual voltage 120/277 VAC

    • Voltage Rating: 120/277 V
    • Current Rating: 0.03/0.05 A
    • Wattage Rating: 4.3 W
    • Lamp Wattage:
    • Power Source: Battery
    • Number of Lamps:
    • Lamp Type: LED
    • Lamp Base:
    • Battery Size:
    • Battery Type: Nickel-Cadmium
    • Color Temperature:
    • Average Life: 10 years
    • Legend Size:
    • Lumens:
    • Shade Included:
    • Shade Type:
    • Shade Material:
    • Shade Color:
    • Ballast/Driver Type:
    • Fixture Material: Thermoplastic
    • Color: Red/White
    • Overall Width: 19-1/4 in
    • Overall Depth: 4-3/4 in
    • Overall Height: 8 in
    • Diameter:
    • Operating Temperature: 50 to 140 deg F
    • Mounting Type: Universal
    • Includes:

    UL 924 Listed | OSHA Approved | FCC Compliant
