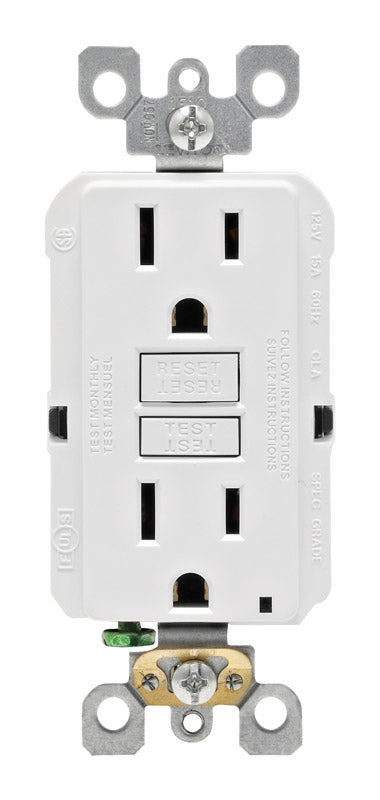

Leviton GFCI Receptacle 15 amps 5-15R 125 volts White
Leviton Mfg

Leviton GFCI Receptacle 15 amps 5-15R 125 volts White

Our Item #: VSHE3532694 UPC: 078477714041
Store Pickup i
Today
12 in stock
$23.99

Leviton GFCI Receptacle 15 amps 5-15R 125 volts White

  • Brand Name: Leviton
  • Maximum Amperage: 15 amps
  • Volts: 125 volt
  • Color: White
  • Product Type: GFCI Outlet
  • Nema Type: 5-15R
  • Number in Package: 1 pk
  • Packaging Type: Boxed
  • Indoor or Outdoor: Indoor
  • Outlet Type: GFCI
  • Height: 4.25 in.
  • Number of Wires: 3
  • UL Listed: Yes
  • Material: Thermoplastic
  • Number of Poles: 2
  • Commercial or Residential: Commerical and Residential
  • CSA Listed: Yes
  • Back and side wiring
  • Self-test
  • Multipack - Ace no. 3532850

    • Unit: EA
    UPC: 078477714041
    Model Number: GFNT1-OKW
    Leviton GFCI Receptacle 15 amps 5-15R 125 volts White
    $23.99

    • Provides continuous ground fault protection detects and trips on actual ground fault even when self test is being conducted
    • On initial power up, tests the GFCI within 3 secs
    • Auto-monitoring exceeds the UL requirement
    • Auto adapts and shifts to more frequent testing if potential problem is detected
    • Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
    • Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
    • Electronics are designed to minimize any false triggers
    • Reduced depth makes it easier to install in any electrical box, even shallow ones
    • Terminals allow for easy wiring options - back and side wire capable
    • External back wire clamps provide visual indication of proper wire seating
    • Withstands high torque and resists wire pullout
    • Standard brass self-grounding clip
    • Trip threshold meets or exceeds UL requirements for tripping time
    • Improved immunity to high-frequency noise reduces nuisance tripping
    • Advanced electronics design provides great resistance to electrical surges and over voltages
    • Compatible with all Decora devices and wallplates

    • Voltage Rating: 125 V
    • Current Rating: 15 A
    • Frequency Rating: 60 Hz
    • Wattage Rating: 1 hp
    • Number of Poles: 2
    • Number of Wires: 3
    • Number of Phases:
    • Number of Gangs:
    • Wiring Type: Back, Side
    • Wire Size: 14 to 10 AWG
    • Socket Type:
    • IP Rating:
    • NEMA Configuration: 5-15R
    • Operating Temperature: -35 to 66 deg C
    • Mounting Type: Wall
    • Material: Polycarbonate
    • Color: White
    • Dimensions: 4.21 in L x 1.69 in W x 1.32 in D
    • Suitable for: Decora Devices and Wallplates
    • Includes: Wallplate

    ANSI C-73 Specified | CSA Certified | Fed Spec WC-596 Rated | NOM Certified | UL498 Listed
