HICAP HI PRESS ADJ REG 0-30PSI
Regular price
$56.29

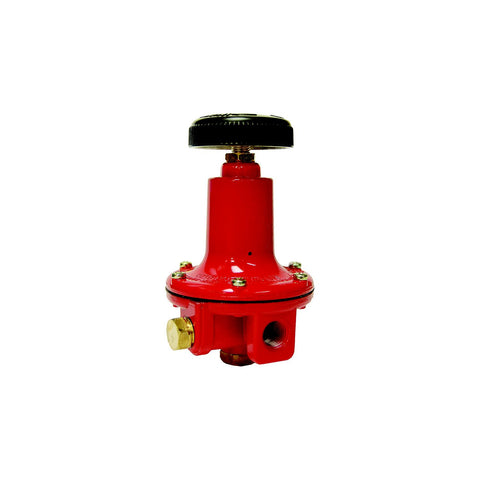

The MEGR-6120 Series are UL listed high-pressure regulators that meet a variety of applications for liquid or vapor service. The compact body design makes these regulators particularly useful in installations with space limitations. The basic MEGR-6120 Series regulators come equipped with a handwheel adjustment. The MEGR-6120 & MEGR-6121 Series are UL listed as high pressure, non-relief regulators. Both MEGR-6120 & MEGR-6121 Series regulators contain brass materials that are not compatible with anhydrous ammonia service.
UPC: 815505013536
Model Number: MEGR-6120-30
- Max. Inlet Pressure: 250 PSI (17, 2 bar)
- Inlet Connection: 1/4 FNPT
- Outlet Connection: 1/4 FNPT
- Gauge Port: 1/4 FNPT
- Exterior Finish: Red Wet Coat
- Diaphragm: Fabric Reinforced Buna N
- Body / Bonnet Material: Die Cast Aluminum
- Liquid Capacity: 3-5 GPH
- Listings: UL LISTED / UL 144
UPC: 815505013536
Model Number: MEGR-6120-30
