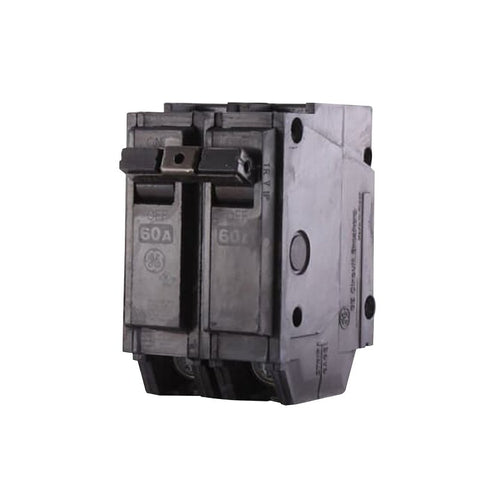

GE THQL2160 Feeder Circuit Breaker, Type THQL, 60 A, 2-Pole, 120/240 V, Non-Interchangeable Trip, Plug
GE THQL2160 Feeder Circuit Breaker, Type THQL, 60 A, 2-Pole, 120/240 V, Non-Interchangeable Trip, Plug
Ge

GE THQL2160 Feeder Circuit Breaker, Type THQL, 60 A, 2-Pole, 120/240 V, Non-Interchangeable Trip, Plug

Our Item #: VORG6122113 UPC: 783164048483
Delivery i
3-5 Business Days
1053 available
Ship to Store i
Pickup in 2-4 days
754 available
$17.52 $20.25you save $2.73
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 A 14-8 Cu or 12-8 Al AWG wire, 35 to 60 A 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).
Unit: EA
UPC: 783164048483
Model Number: THQL2160A
GE THQL2160 Feeder Circuit Breaker, Type THQL, 60 A, 2-Pole, 120/240 V, Non-Interchangeable Trip, Plug
$17.52$20.25

  • Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
  • Calibration screw is cemented to prevent shifting
  • Case is made of heat-resistant thermoset for stability and structural integrity
  • Trips to the center position

  • Actuator Type: Quick-Make Quick-Break
  • Current Rating: 60 A
  • Dimensions: 3.28 in L x 2 in W x 2.38 in H
  • Frame Type: Q-Line
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Phases: 1
  • Number of Poles: 2
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 60 to 75 deg C
  • Suitable for: Reverse Feed
  • Terminal Type: Lug
  • Trip Sensitivity: 600 A
  • Trip Type: Non-Interchangeable
  • Type: Type THQL
  • Voltage Rating: 120/240 V
  • Wire Size: 8 to 3 8 to 2 AWG
