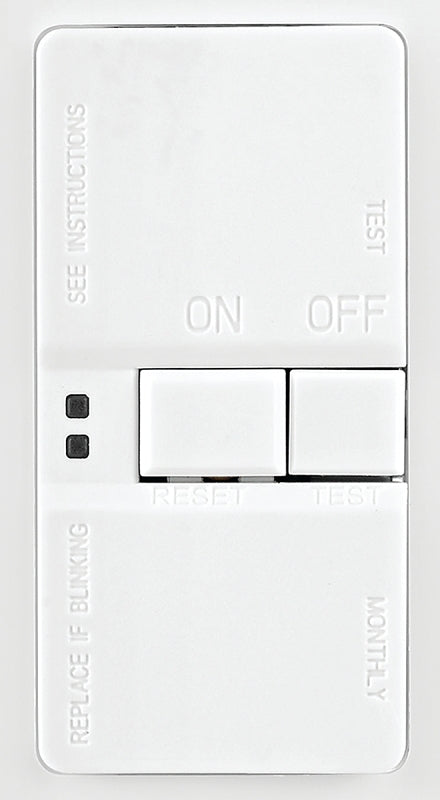

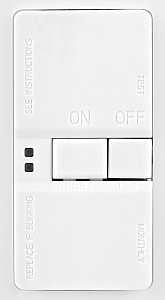

Eaton Wiring Devices SGFD20W GFCI Receptacle, 125 VAC, 20 A, NEMA: NEMA 5-20R, Back and Side Wiring, White
Eaton Wiring Devices SGFD20W GFCI Receptacle, 125 VAC, 20 A, NEMA: NEMA 5-20R, Back and Side Wiring, White
Eaton Wiring Devices SGFD20W GFCI Receptacle, 125 VAC, 20 A, NEMA: NEMA 5-20R, Back and Side Wiring, White
Eaton Wiring Devices SGFD20W GFCI Receptacle, 125 VAC, 20 A, NEMA: NEMA 5-20R, Back and Side Wiring, White
Eaton Wiring Devices SGFD20W GFCI Receptacle, 125 VAC, 20 A, NEMA: NEMA 5-20R, Back and Side Wiring, White
Eaton Wiring Devices SGFD20W GFCI Receptacle, 125 VAC, 20 A, NEMA: NEMA 5-20R, Back and Side Wiring, White
Eaton Wiring Devices

Eaton Wiring Devices SGFD20W GFCI Receptacle, 125 VAC, 20 A, NEMA: NEMA 5-20R, Back and Side Wiring, White

Our Item #: VORG7335847 UPC: 032664750069
Delivery i
3-5 Business Days
88 available
Ship to Store i
Pickup in 2-4 days
17 available
$33.41 $42.39you save $8.98
Dead-front/blank face GFCI is UL listed, fully compliant with all latest UL 943 (4th edition) Class A GFCI, UL 498 requirements and UL 508 for motor control switch horsepower rating, including the latest self-testing requirements. GFCI lockout function protects from miswired line a load connections and GFCI circuitry damage. Compact design provides maximum wiring room in grounded box applications. Device and wallplate mounting screws are captive, speeding installation time. Includes standard size unbreakable wallplate.⁠­.
Unit: EA
UPC: 32664022814
Model Number: SGFD20W
Eaton Wiring Devices SGFD20W GFCI Receptacle, 125 VAC, 20 A, NEMA: NEMA 5-20R, Back and Side Wiring, White
$33.41$42.39

  • Visual indicator lights give quick notification of a tripped or "end of life" condition
  • Automatically self tests periodically to ensure GFCI protection
  • Rugged construction provides unsurpassed chemical and impact resistance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Line side terminals are backed out and staked for fast installation
  • Horizontal test/reset button alignment provides larger unobstructed area
  • Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
  • Test and reset buttons are color matched to provide superior aesthetics

  • Color: White
  • Current Rating: 20 A
  • Dimensions: 4.19 in L x 1.3 in W x 1.2 in D
  • Includes: Wallplate
  • Material: Nylon
  • Mounting Type: Wall
  • Nema Rating: NEMA 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -35 to 66 deg C
  • Voltage Rating: 125 VAC
  • Wire Size: 14 to 10 AWG
  • Wiring Type: Back and Side
