Eaton Wiring Devices

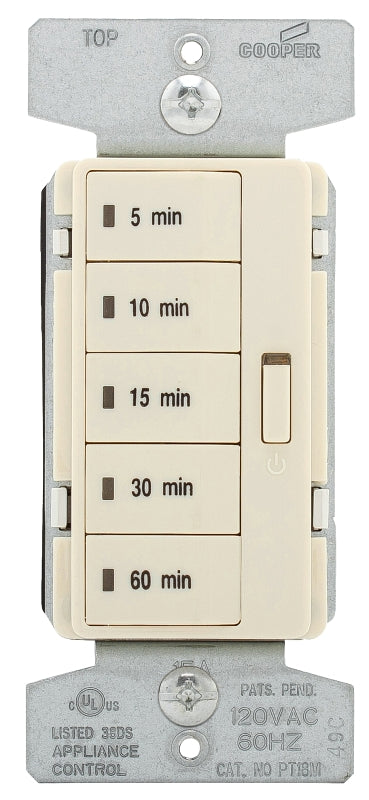

Eaton Wiring Devices PT18M-LA-K Minute Timer, 15 A, 120 V, 1800 W, 5 to 60 min Time Setting, Light Almond

Our Item #: VORG8024036 UPC: 032664723513
Delivery i
3-5 Business Days
190 available
Ship to Store i
Pickup in 2-4 days
64 available
Regular price $37.66 Sale price$49.99you save $12.33
Accell timers are programmable hr or min time delay in 2 modes for preset groups or down to 1 min increments. Accell timers match the aesthetics of Accell dimmers and are available in 7 colors. Rated for up to 1800 W loads ac at 120 V and operates incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent and LED lighting load types. Ideal for both new construction and retrofit with no neutral required for installation.
Unit: CD
UPC: 032664723513
Model Number: PT18M-LA-K
Eaton Wiring Devices PT18M-LA-K Minute Timer, 15 A, 120 V, 1800 W, 5 to 60 min Time Setting, Light Almond
$37.66$49.99

  • Manual over ride when timer functionality isn't needed
  • Five preset time intervals, easily programmable to alternate time intervals to suit your needs
  • Horsepower-rated for 1/4 hp motor loads
  • LED indication of time interval selected and countdown
  • Automatically turns lights/fan On/Off after preset time
  • Ideal for both new construction and retrofit with no neutral required for installation

  • Color: Light Almond
  • Current Rating: 15 A
  • Depth: 1.8 in
  • Finish: Gloss
  • Frequency Rating: 60 Hz
  • Height: 5.93 in
  • HP Rating: 1/4 hp
  • Installation Type: Box Wall
  • Material: Polycarbonate
  • Number of Poles: 1
  • Suitable for: Compact Fluorescent Electronic Low-Voltage Fluorescent Incandescent/ Halogen Led and Magnetic Low-Voltage Lights
  • Temperature Rating: 0 to 40 deg C
  • Time Setting: 5 to 60 min
  • Type: Programmable
  • Voltage Rating: 120 V
  • Wattage Rating: 1800 W
  • Width: 1.39 in
