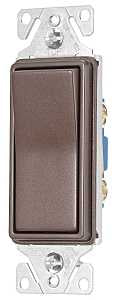

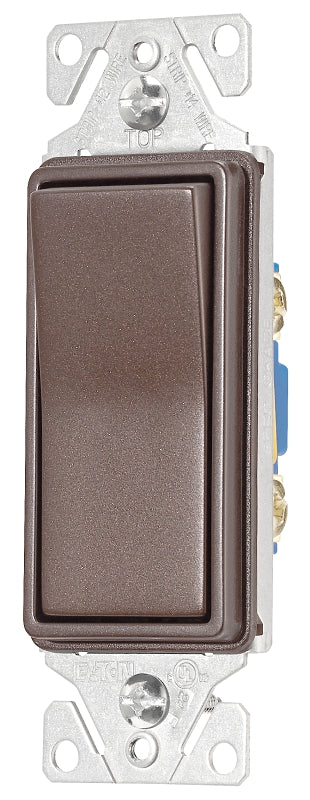

Eaton Wiring Devices 7500 7501RB-K-L Rocker Switch, 15 A, 120/277 V, SPST, Thermoplastic Housing Material
Eaton Wiring Devices 7500 7501RB-K-L Rocker Switch, 15 A, 120/277 V, SPST, Thermoplastic Housing Material
Eaton Wiring Devices

Eaton Wiring Devices 7500 Series 7501RB-K-L Rocker Switch, 15 A, 120/277 V, SPST, Thermoplastic Housing Material

Our Item #: VORG9650995 UPC: 032664745263
Delivery i
3-5 Business Days
228 available
Ship to Store i
Pickup in 2-4 days
22 available
$6.61 $8.25you save $1.64
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.
Unit: CD
UPC: 032664745263
Model Number: 7501RB-K-L
Eaton Wiring Devices 7500 Series 7501RB-K-L Rocker Switch, 15 A, 120/277 V, SPST, Thermoplastic Housing Material
$6.61$8.25

  • Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
  • Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
  • Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
  • Push-in terminals accept #14 AWG solid wire for quick installation
  • Stippled ground screw terminal standard
  • Long, broad mounting strap virtually eliminates floating installations
  • Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
  • Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
  • Lighted switches glow in OFF position
  • Redesigned paddle for easier actuation and quiet operation

  • Color: Oil-Rubbed Bronze
  • Contact Configuration: SPST
  • Current Rating: 15 A
  • Housing Material: Thermoplastic
  • Mounting Type: Strap
  • Voltage Rating: 120/277 V
