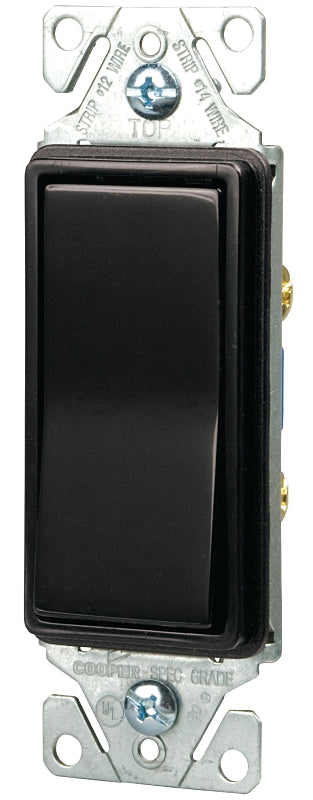

Eaton 7500 Series 7501BK-BOX Rocker Switch, 15 A, 120/277 V, SPST, Back, Push Wire Terminal, Black
Eaton Wiring Devices

Eaton 7500 Series 7501BK-BOX Rocker Switch, 15 A, 120/277 V, SPST, Back, Push Wire Terminal, Black

Our Item #: VORG8804668 UPC: 032664752407
Delivery i
3-5 Business Days
677 available
Ship to Store i
Pickup in 2-4 days
43 available
$3.26 $3.55you save $0.29
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on-the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. push-in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL Listed, meets all UL20 requirements.
Unit: EA
UPC: 032664752407
Model Number: 7501BK-BOX
Eaton 7500 Series 7501BK-BOX Rocker Switch, 15 A, 120/277 V, SPST, Back, Push Wire Terminal, Black
$3.26$3.55

  • Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
  • Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
  • Backwire clamps on side terminals provide for easy installation of 12 and 14 AWG wire
  • Push-in terminals accept #14 AWG solid wire for quick installation
  • Stippled ground screw terminal standard
  • Long, broad mounting strap virtually eliminates floating installations
  • Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
  • Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
  • Lighted switches glow-in "Off" position
  • Redesigned paddle for easier actuation and quiet operation

  • Color: Black
  • Contact Configuration: SPST
  • Contact Material: Brass
  • Current Rating: 15 A
  • Dielectric Strength: 2000 V
  • Dimensions: 4.19 in H x 0.97 in W x 1.44 in D
  • Housing Material: Thermoplastic
  • Includes: (1) Metal Strap
  • Mounting Type: Flush
  • Number of Phases: 1
  • Number of Poles: 1
  • Temperature Rating: -20 to 60 deg C
  • Terminal Type: Back Push Wire
  • Voltage Rating: 120/277 V
