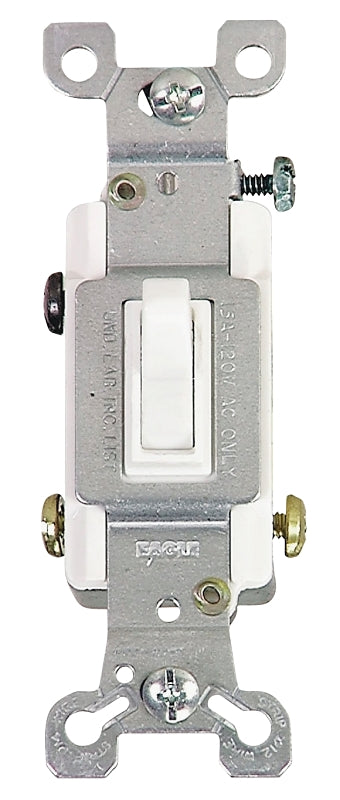

Eaton Wiring Devices 1303-7W-BOX Toggle Switch, 15 A, 120 V, Polycarbonate Housing Material, White, Flush Mount, Pack of 10
Regular price
$22.97
Sale price$29.90you save $6.93
Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam-action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.
Unit: EA
UPC: 32664752346
Model Number: 1303-7W-BOX
Unit: EA
UPC: 32664752346
Model Number: 1303-7W-BOX
Features
- 3-way switches feature additional push-in common termination for feed-through tapping
- Push-in terminals accept #14 AWG solid wire only, side wire terminals accept up to #10 AWG solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
- Wire looper speeds termination of both #14 and #12 AWG wire
More Specifications
- Actuator Type: Toggle
- Color: White
- Contact Material: Silver
- Current Rating: 15 A
- Dielectric Strength: 1500 V
- Dimensions: 4.2 in L x 1.44 in W x 1.103 in D
- Housing Material: Polycarbonate
- Mounting Type: Flush
- Temperature Rating: -20 to 60 deg C
- Voltage Rating: 120 V
- Wattage Rating: 0.5 hp
