Eaton Wiring Devices

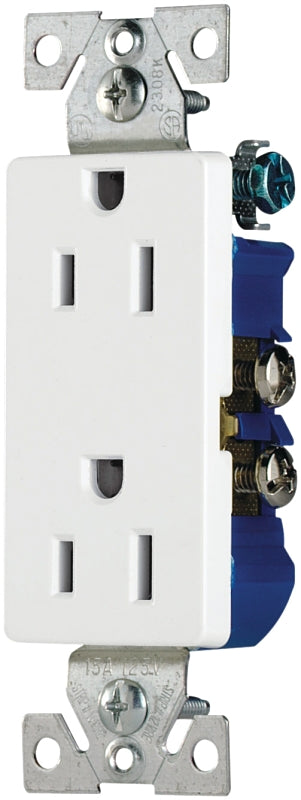

Eaton Wiring Devices 1107W Duplex Receptacle, Nylon, White, 2-Pole, 15 A, 125 V, Back, Side Wiring, NEMA: 5-15R
Regular price
$1.41
Sale price$1.99you save $0.58
Decorator receptacles feature longer, wider straps providing 40% more contact area to wall board. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out - ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.
Unit: EA
UPC: 32664512483
Model Number: 1107W
Unit: EA
UPC: 32664512483
Model Number: 1107W
Eaton Wiring Devices 1107W Duplex Receptacle, Nylon, White, 2-Pole, 15 A, 125 V, Back, Side Wiring, NEMA: 5-15R
$1.41$1.99
Features
- Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
- Longer, wider strap provides 40% more contact area to wallboard
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- High impact-resistant thermoplastic face and back body eliminates breakage
- Double-wipe ground contacts ensure long-term ground retention
- Easy access split circuit break-off tab
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
- Terminal screws backed out ready for wiring
More Specifications
- Color: White
- Current Rating: 15 A
- Dimensions: 4.2 in L x 1.30 in W x 0.69 in D
- Frequency Rating: 60 Hz
- Material: Nylon
- Mounting Type: Wall
- NEMA Configuration: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
